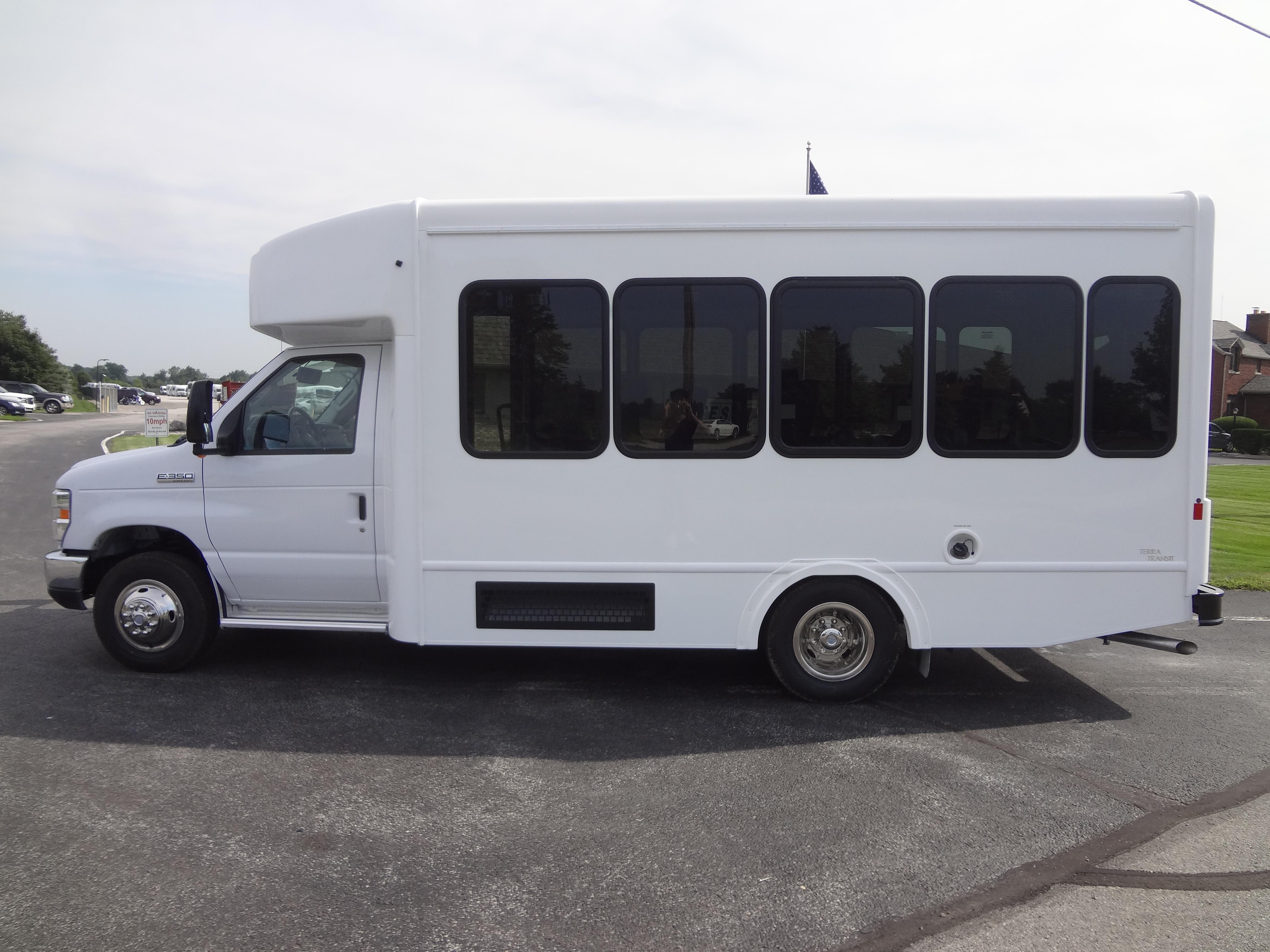

Vehicle Description

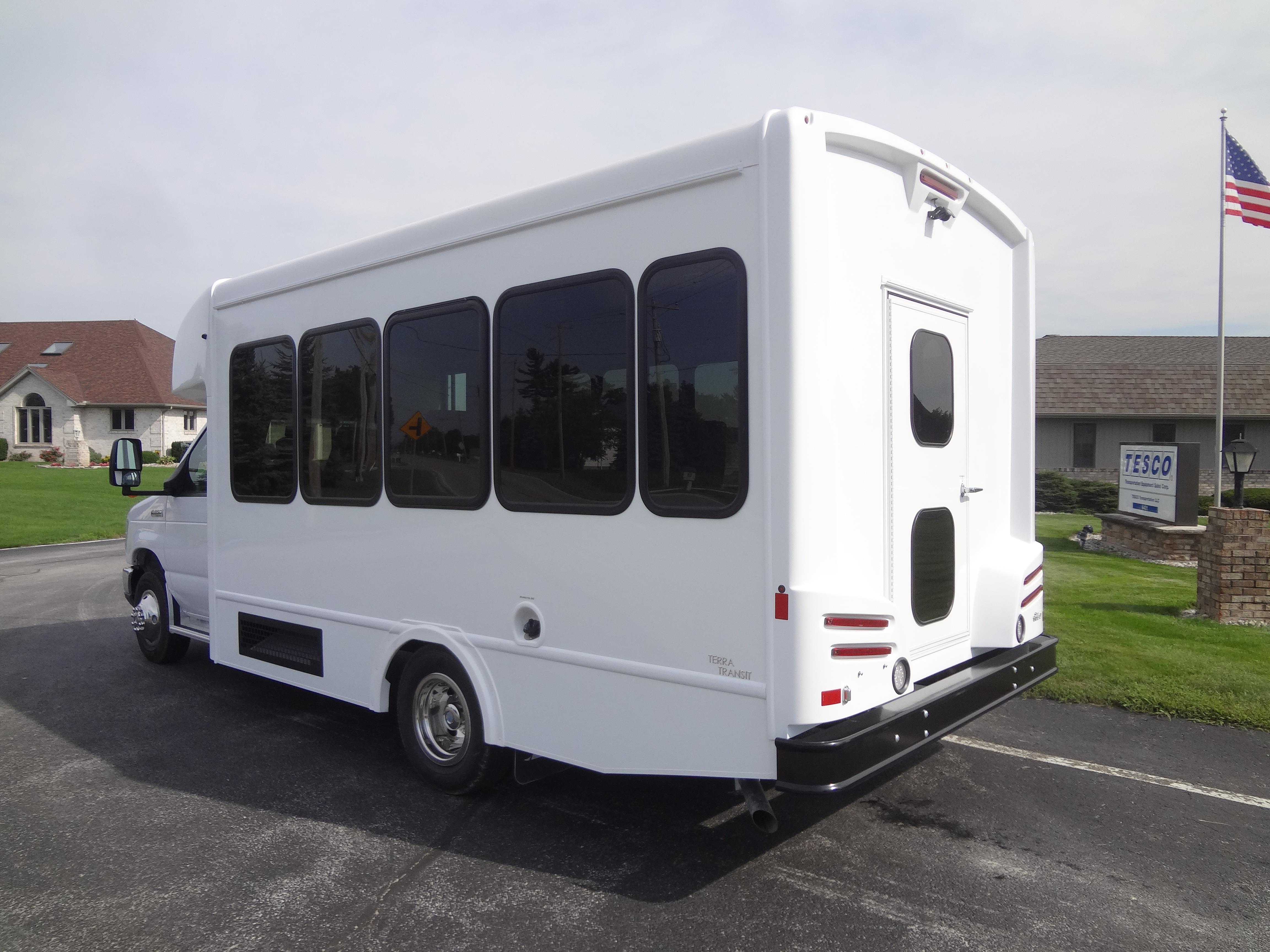

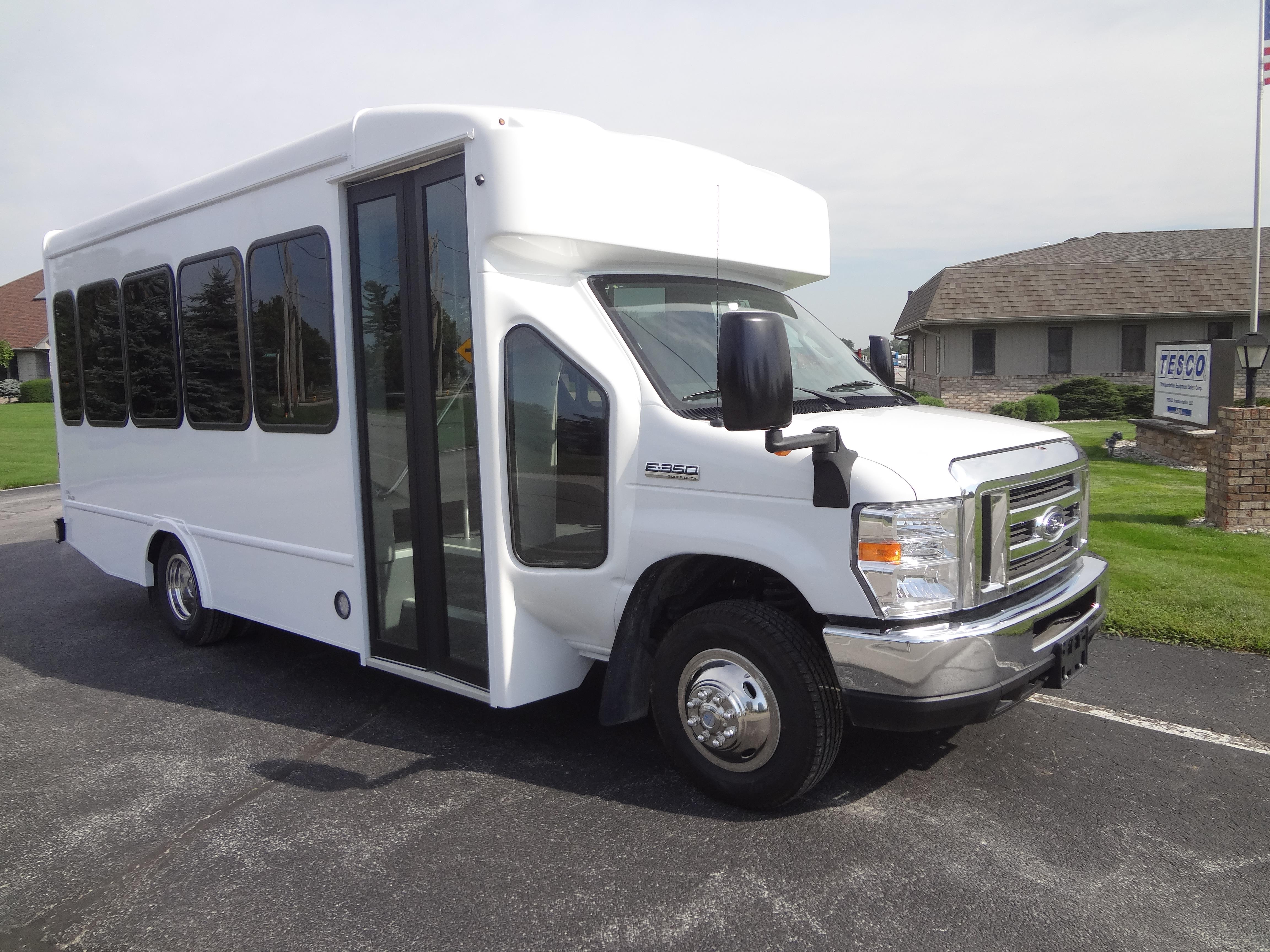

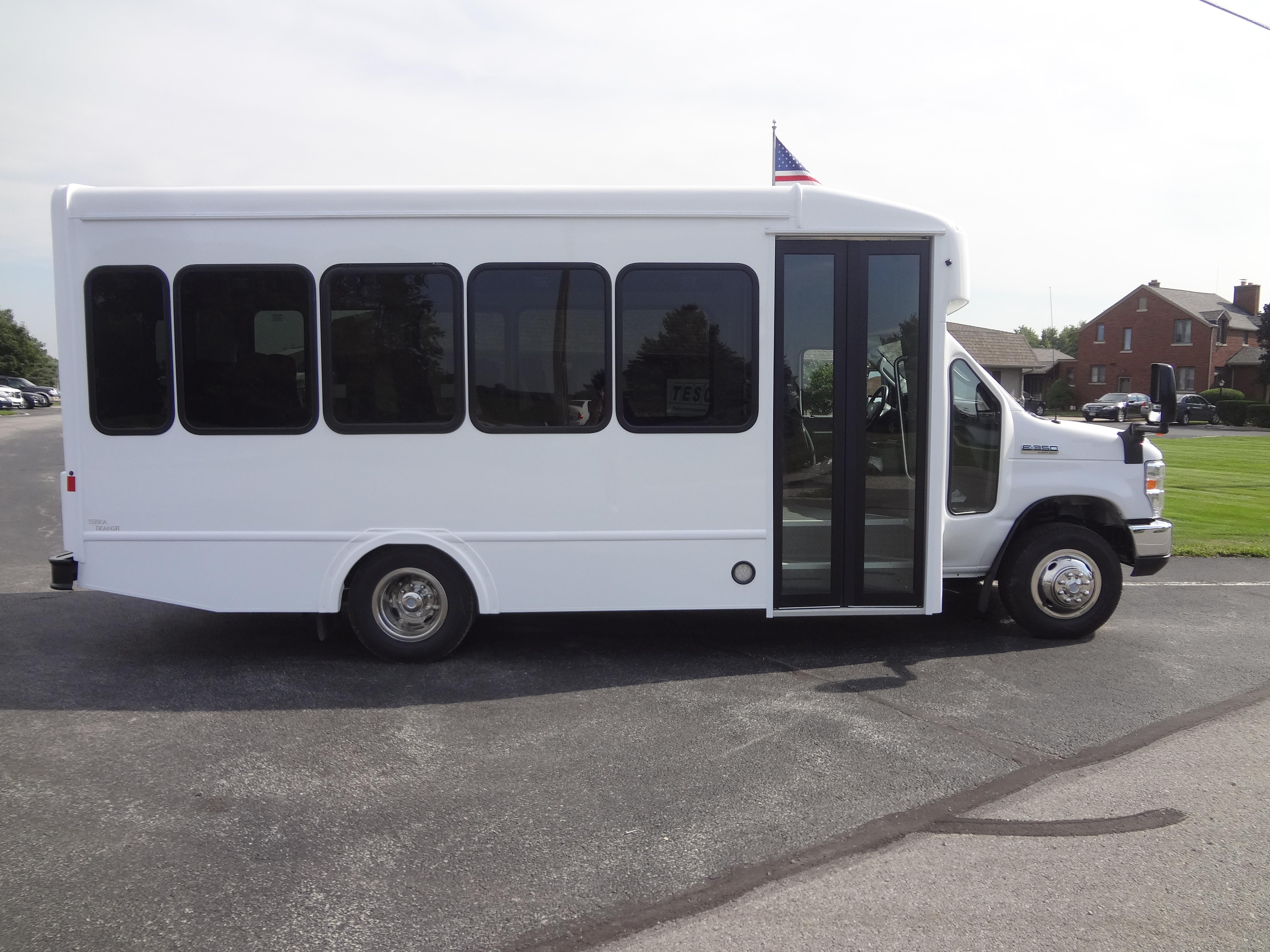

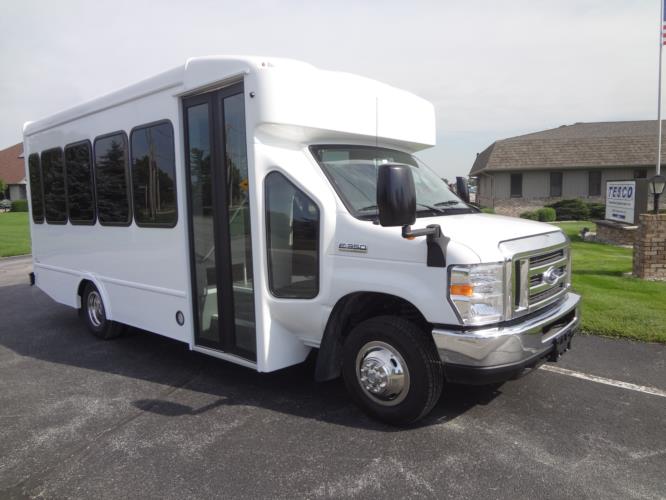

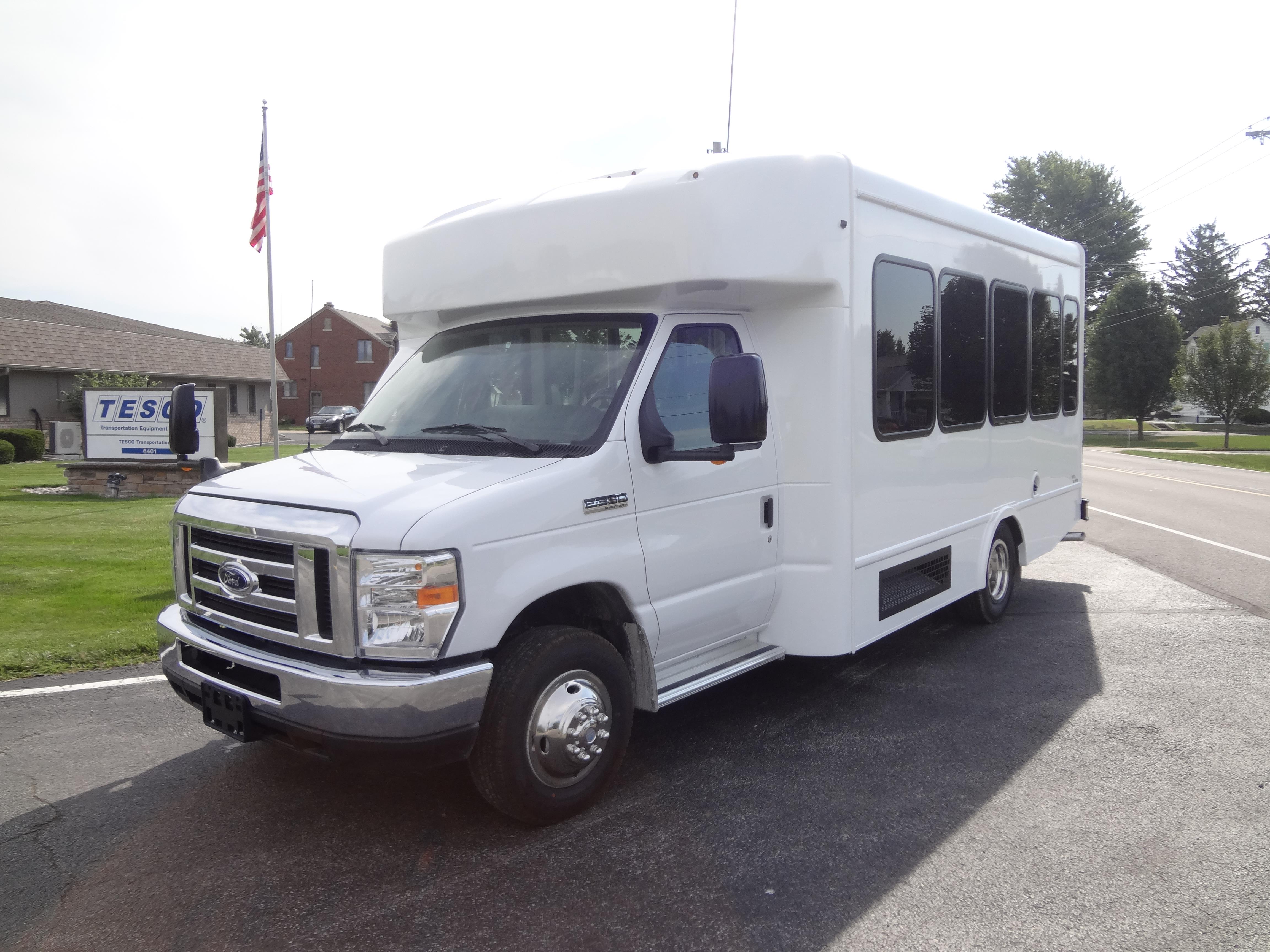

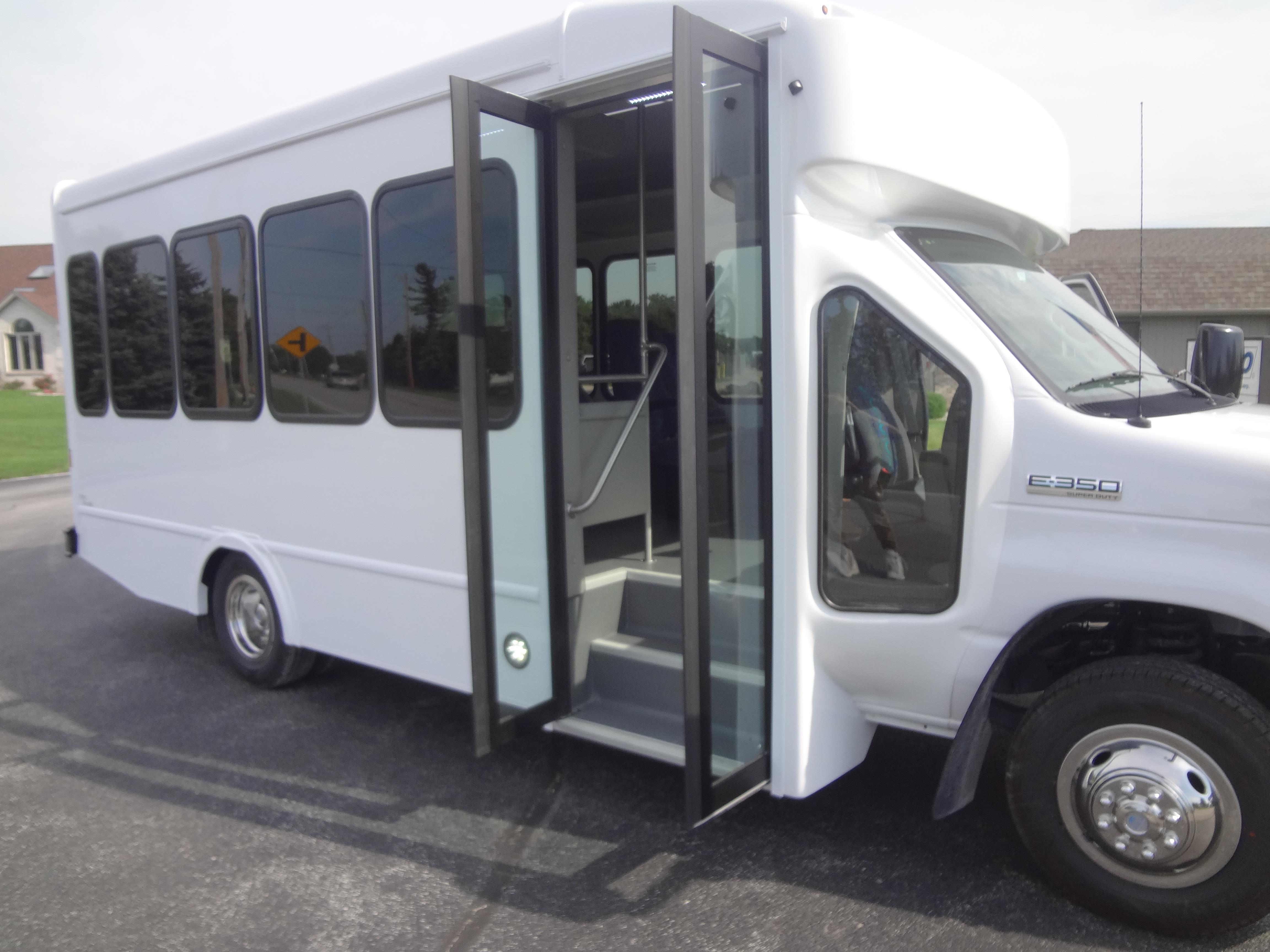

Terra Transit

The Terra Transit shuttle bus is an economical compliment to Turtle Top's mid-size fleet. This abridged version of the Odyssey also offers seating for up to 25 passengers (plus driver) and maintains the same safety standards that Turtle Top is known for. Your riders will find it easy to enter and exit with ample headroom and aisle passage. With a variety of floor plans, you can meet your needs for storage, seating preferences, and wheelchair accessibility. A full roll cage, quality construction, and 2-year warranty make this the most affordable and practical choice for safe, dependable transportation. Count on a Turtle to keep you moving forward! DESIGNED TO MEET OR EXCEED APPLICABLE FMVSS STANDARDS and FORD QVM

Features

Terra Transit Advantages
  • E350/E450 Chassis
  • Overall Vehicle Length 23' & 25 1/2' * 79" Interior Height / 94" Wall to Wall
  • Flat Floor Standard
  • Fully Welded Steel Roll Cage w/ Rust Inhibitor
  • High Gloss 1-Piece Composite Exterior Side Panels w/ UV Protection
  • Interior 1-Piece Ceiling & Sidewalls
  • GXL Wiring for all Interior & Exterior Components
  • Exterior LED Lighting
  • Up to 25 Passengers + Driver
Standard Features & Equipment
  • 76" interior height
  • Flat floor is standard
  • OEM dual high back captains chairs
  • OEM AM/FM/CD stereo radio with 2 speakers in cab
  • OEM dash A/C & heat standard
  • OEM interior rear view mirror
  • Smooth black rubber floor under seats
  • Black rubber treads in step well
  • Ribbed aisle (black rubber)
  • Durable bright white reinforced fiberglass ceiling and sidewalls
  • Modesty panel & angled hand rail at left of entrance door
  • Operator-friendly lighted switch panel
  • Color-coded high temp GXL wiring
  • Convenience lighting in cab and stepwell
  • Mini-Omega LED front to rear lighting in ceilings
  • 72" Lap Belts
  • Welded tubular steel cage
  • Flat vertical sidewalls w/ fiberglass composite
  • Welded perimeter steel floor frame supported by welded "hat channel" cross members
  • Steel wheel well plates
  • Drive shaft guard(s)
  • Rear mud flaps
  • Re-Route exhaust to driver's side of vehicle
  • Steel Cage primed with rust inhibitor
  • Underbody foam sealed and undercoated
  • 5/8" AdvanTech subfloor
  • Fiberglass front and rear cowls & Fiberglass composite exterior sidewalls
  • One-piece pre-molded fiberglass roof
  • Flat fiberglass lower body skirts
  • OEM white fiberglass gel coat exterior
  • Rubber fender flares
  • 1" polystyrene foam board insulation
  • Tinted solid windows (31' x 36.375")
  • Tinted solid side egress windows adequate to meet FMVSS 217 (31"w x 36.375"h)
  • Tinted solid rear egress window (31" x 36.375"h)
  • Aluminum entrance door - manual b-fold 29" with tinted glass
  • Tinted A-panel window in cab
  • LED upper running/clearance lights per FMVSS 108 (5amber & 5 red)
  • LED stop/tail/turn lights
  • Red reflectors (2 side, 2 rear)
  • Incandescent backup lights & LED license plate lights
  • Heavy-duty steel powder-coated rear bumper
  • Lucerix exterior manual mirrors (L & R)
  • OEM steel wheels
  • Nitrogen tire inflation
  • Front end alignment check
Optional Equipment
  • Terra Transit, 94"BDY / 175"FLR / 23' Overall Length
  • Terra Transit, 94" BDY / 208" FLR / 25' Overall Length
  • FORD E450 158" 5.4L gas V10 w/ door
  • FORD E450 158" 6.8L gas V10 w/ door
  • FORD E450 176" 6.8L gas V10 w/o door
  • FORD E350 158" DRW 5.4L gas V8 w/door
  • FORD E350 158" DRW 6.8L gas V10 w/door
  • E350 158" 5.4L gas V10 w/o door
  • E350 158" 6.8L gas V10 w/o door
  • E450 158" 5.4L gas V10 w/o door
  • E450 158" 6.8L gas V10 w/o door
  • MOR-RYDE rear suspension system
  • Coil springs - ford front heavy duty (pair)
  • Full front end alignment
  • Entrance door - 29" manual in cab door (standard)
  • Entrance door - 36" manual in cab door
  • Entrance door - electronic in cab door
  • Key switch - exterior
  • Single rear door - no windows
  • 18" x 16" rear door window
  • Window - egress, (per window)
  • Additional windows - each side of rear door
  • Top t-slider window
  • ACC a/c system - 55K BTU
  • ACC a/c system - 70K BTU
  • ACC a/c system - 110K BTU
  • R55 roof top mounted condenser
  • R58 roof top mounted condenser
  • Heater - auxiliary 65k BTU, 3 speed
  • Booster pump
  • Exchange std vacuum heater shut-off valves for manual
  • Fan - defrost, mounted in driver area
  • RICON S-2010 lift 34" wide
  • BRAUN Century NCL917
  • Wheelchair door
  • ADA signage
  • Q'STRAINT Q8200 w/L track pockets
  • Q'STRAINT Q8200 w/ 30" L track
  • White rubber standee marker
  • Storage bag - (1) restraint belt
  • ADA compliance package

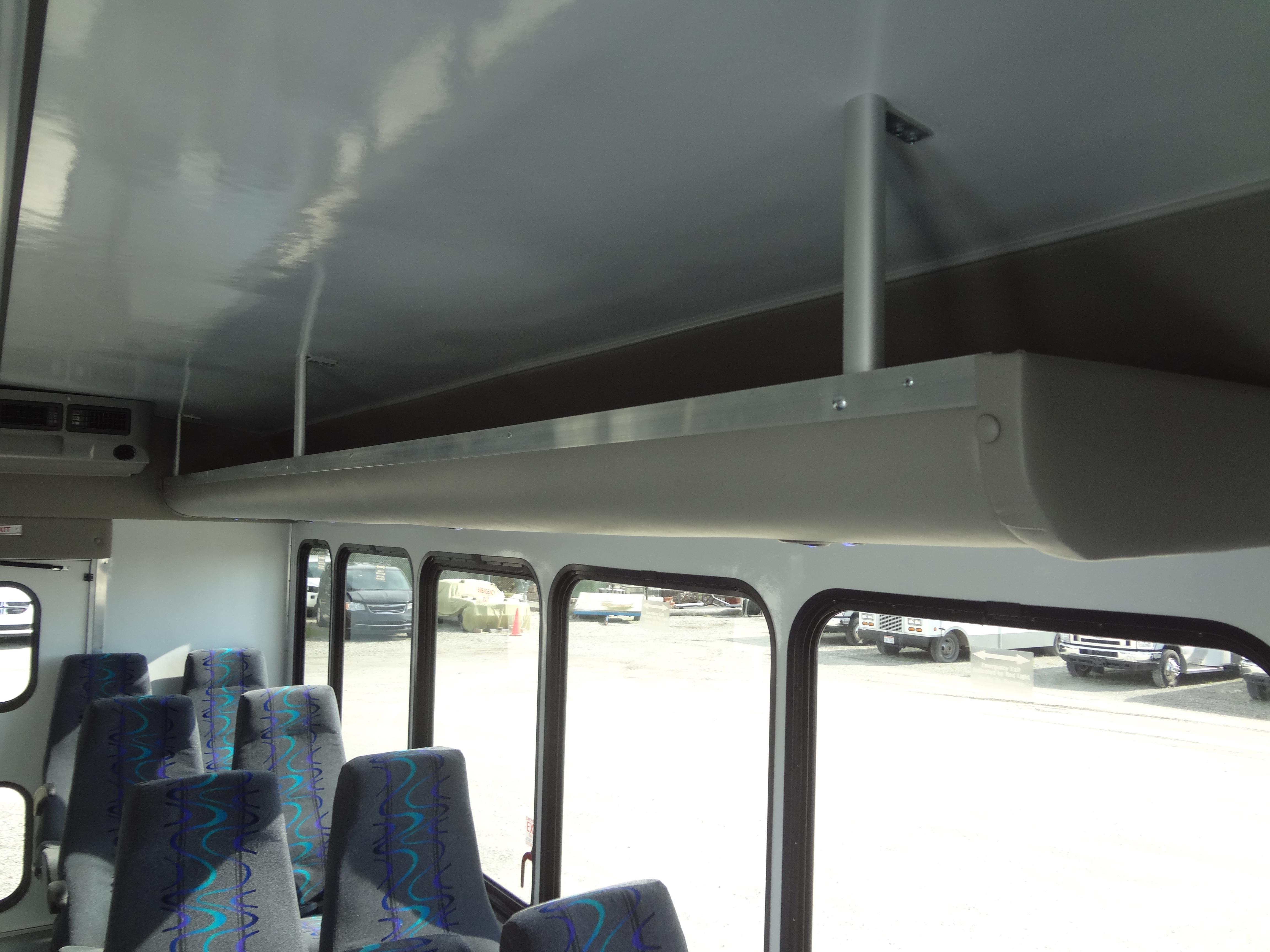

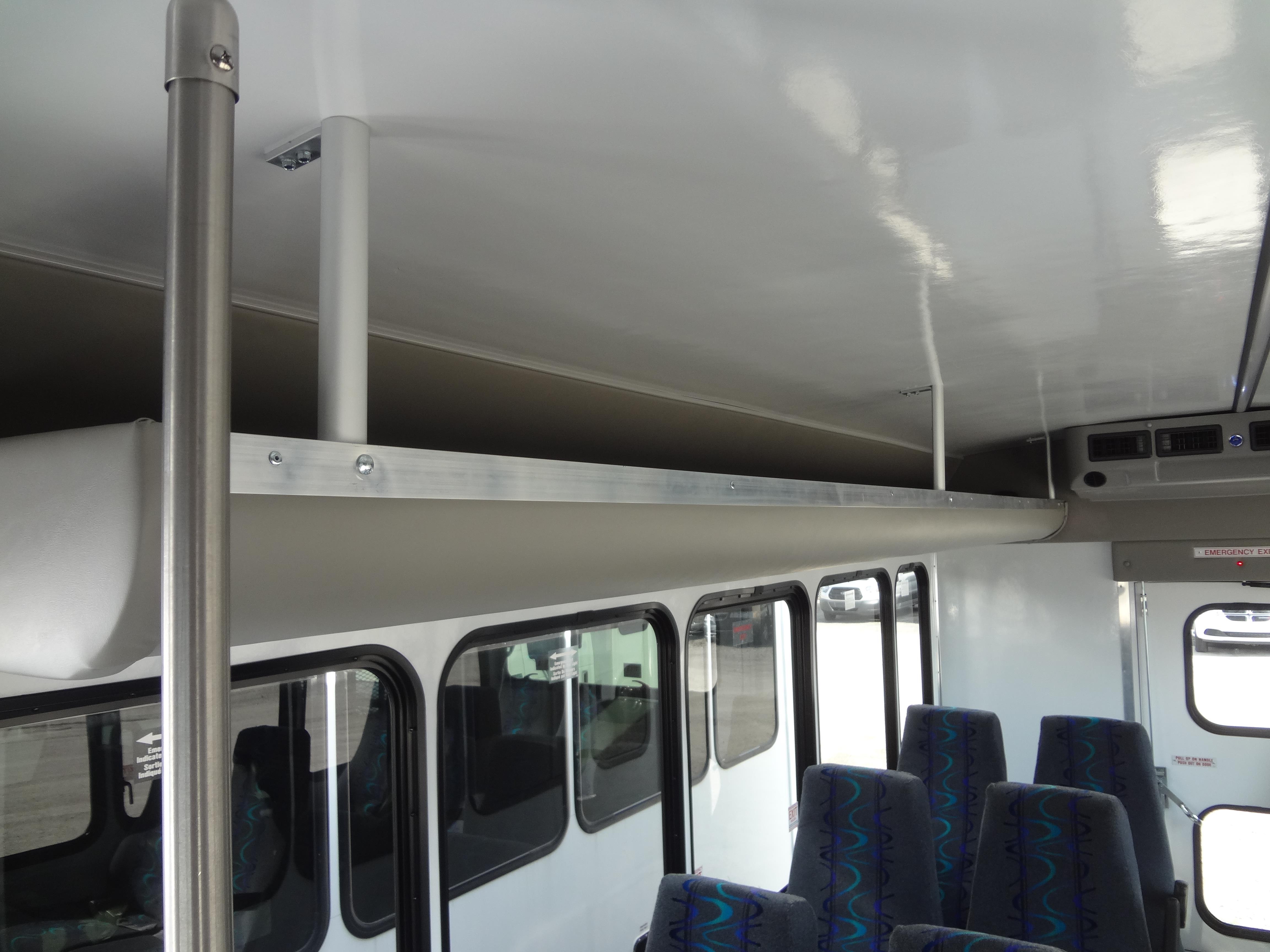

  • Luggage rack - 36" wide
  • Luggage rack - custom fit
  • Swan select luggage racks
  • Economy overhead luggage racks
  • Luggage compartment in rear
  • Cargo restraint barrier - rear
  • Storage compartment - over driver
  • Frame mounted battery slides
  • Engine hour meter
  • Pullout battery tray
  • Stainless steel slide, upgrade
  • Replace OEM batteries with 2 interstate batteries
  • Fast idle control, intermotive
  • Speaker pkg (4 speakers), OEM radio
  • Prep for 2-way radio
  • P.A. system - through radio
  • Rubber floor - black color (standard)
  • Rubber floor - gray color
  • Altro floor upgrade -black
  • Altro floor upgrade -capri blue
  • Altro floor upgrade -bison tan
  • Altro floor upgrade -storm gray
  • Emergency equipment kit
  • Blood borne pathogen kit
  • Back-up alarm
  • Rear exit ajar-light & alarm
  • Roof escape hatch, low profile
  • LED brake light- center high mount
  • Locking fuel door - deluxe
  • Wide angle lens
  • Single transparent lighted destination sign
  • Front multi-destination sign - "LED destinator"
  • Curbside multi-destination sign - "LED destinator"
  • Stepwell light (in addition to std.)
  • Entrance door light - ext. beside door
  • Light - reading, LED double, gray
  • Light - reading, LED double
  • Wheel liners - stainless steel, (4)
  • Spare tire - w/ wheel
  • Chrome tail pipe extension
  • Bolt-on step - rear, black, steel
  • Bumper - romeo rim "help" rear
  • Tow hooks - rear only
  • Running board - aluminum, driver side
  • Velvac mirror- power remote w/ heat
  • Convex mirrors - 5", pair
  • Tail pipe - reroute to driver side (standard)
  • Mirror-rear view, convex
  • Mirror, interior rearview 6" x 16"
  • Stanchion pole-vertical
  • Stanchion pole-guardrail w/modesty panel
  • Stanchion pole- w/guardrail
  • Safety pad - stanchion pole & guardrail
  • Safety shield-driver modesty panel
  • Extended right hand assist rail, 18"
  • Extended right hand assist rail, 36"
  • Standee rail - ceiling
  • Black out window area
  • Wheel rim painted (per wheel)
  • Skirting painted
  • Commercial cab & body painted

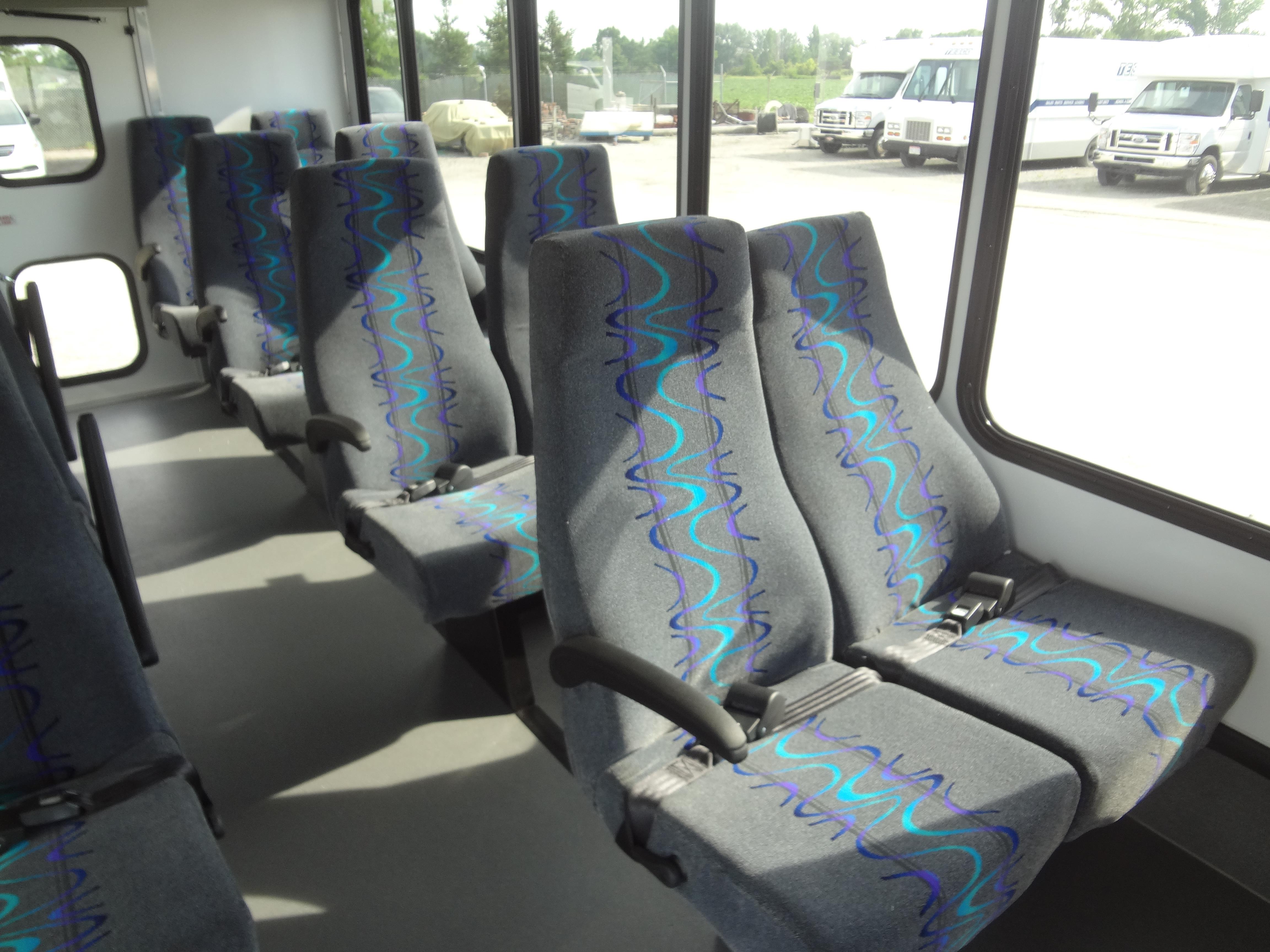

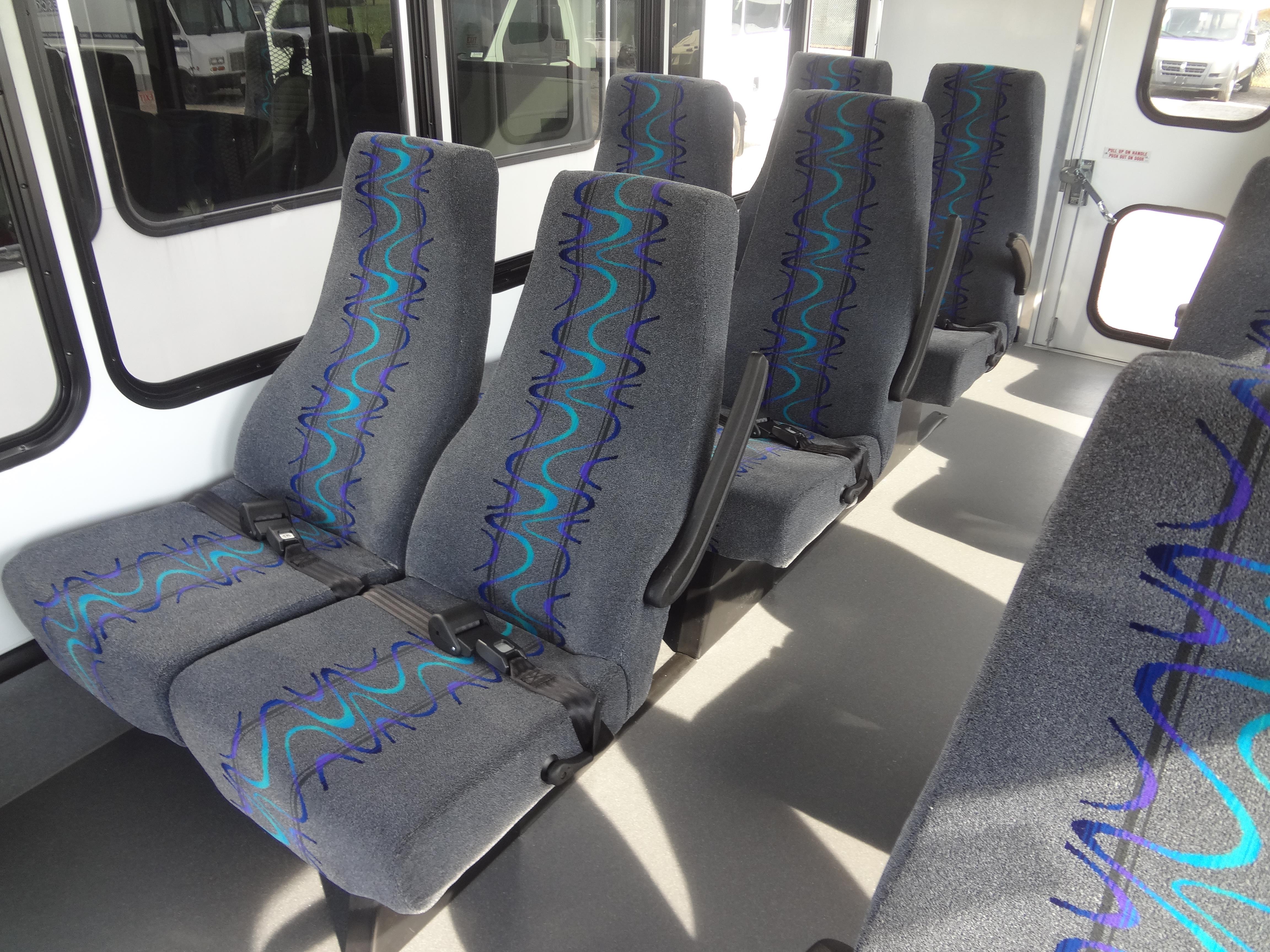

Seating Options

At TESCO Bus, we want the process of purchasing a bus to be as easy as possible. Finding the perfect seat for your bus may seem overwhelming, but we are here to help. We are a distributor for Freedman seats, the most common of all seating in the transportation industry. Freedman offers endless amounts of seating types from the low back vinyls to the high back recliners, both common choices amongst our customers. To take a deeper a look at some of the Freedman seats and products that TESCO offers, click here.

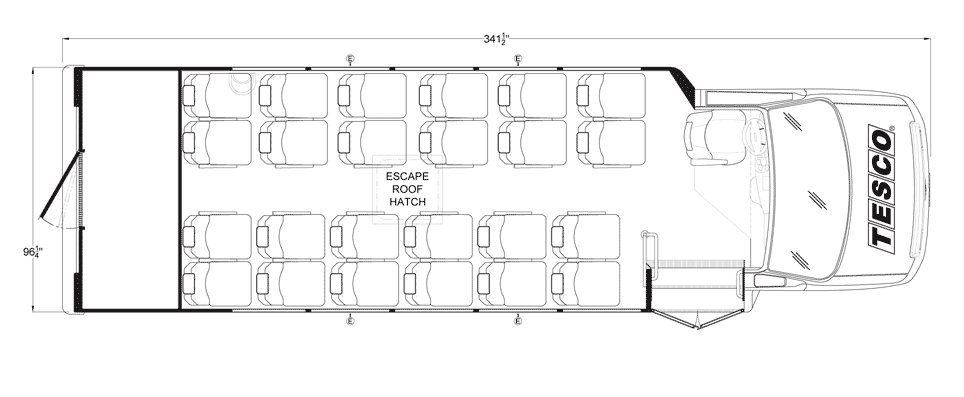

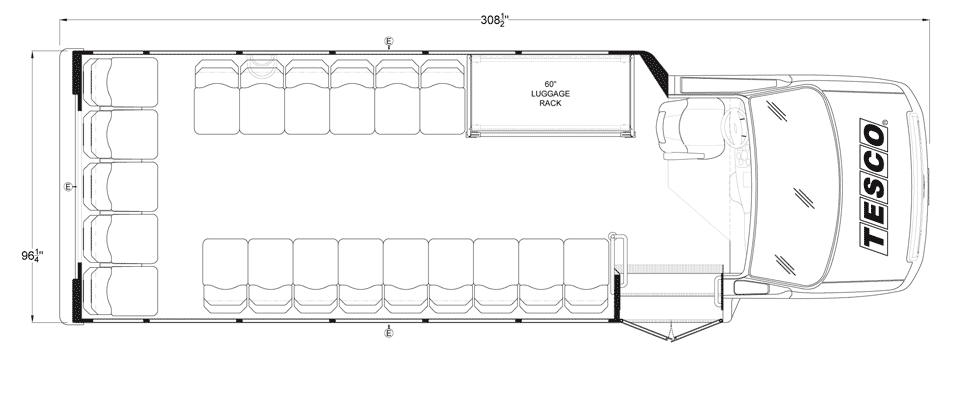

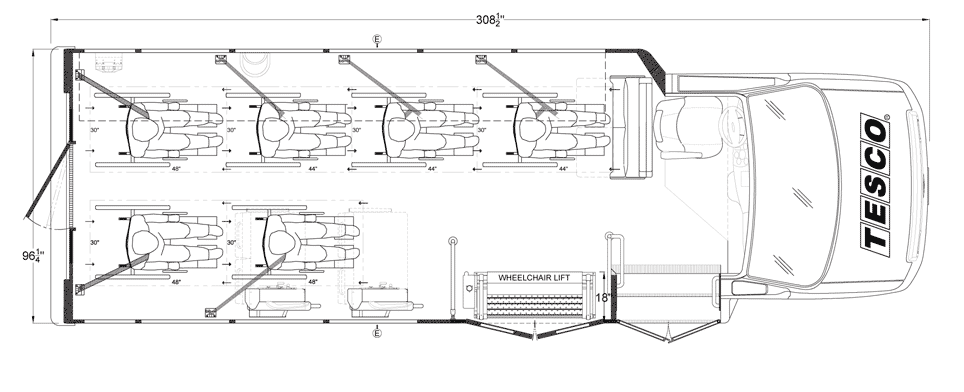

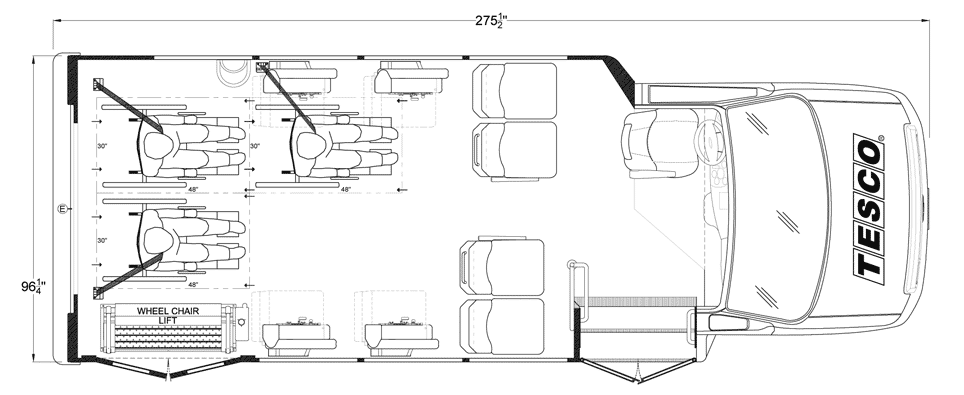

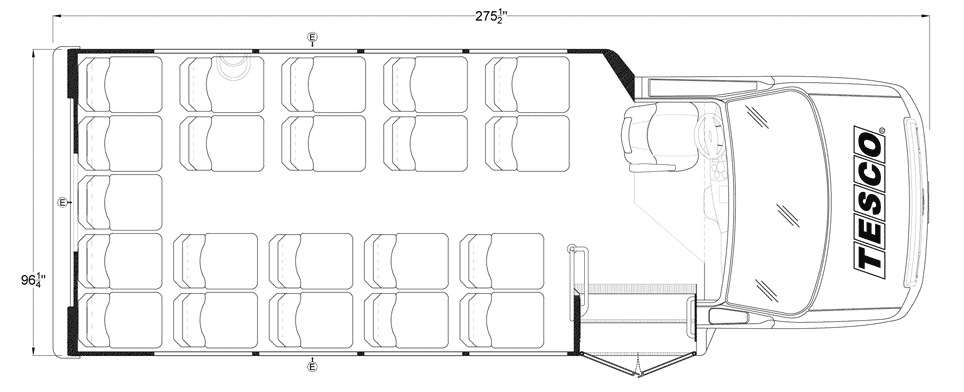

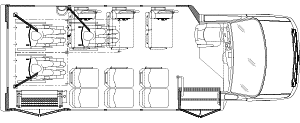

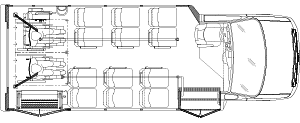

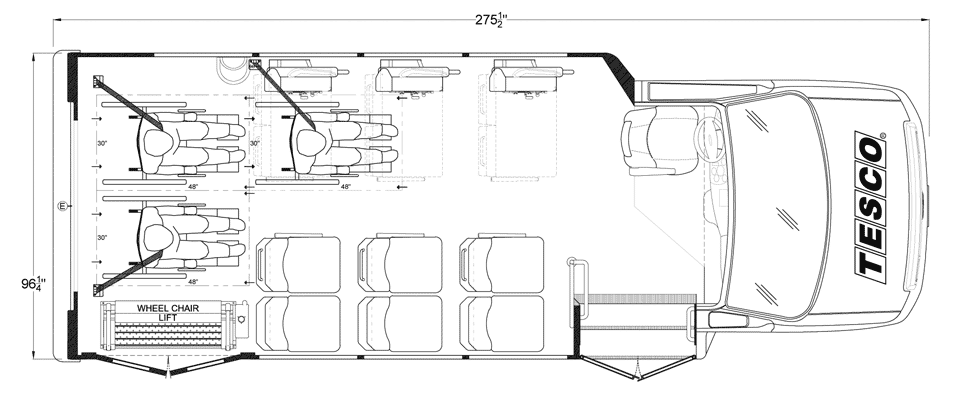

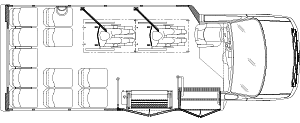

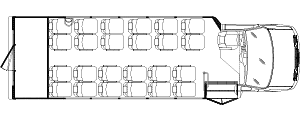

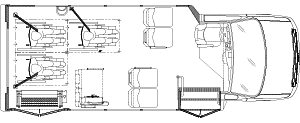

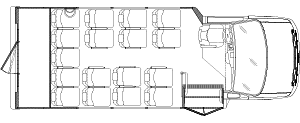

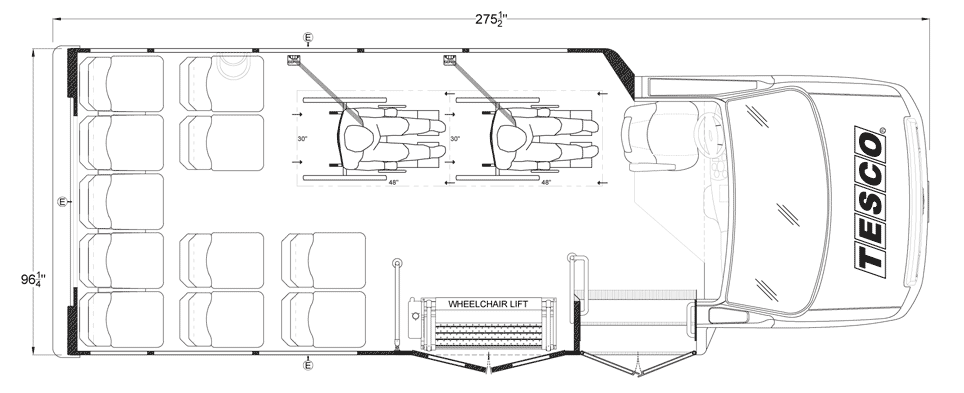

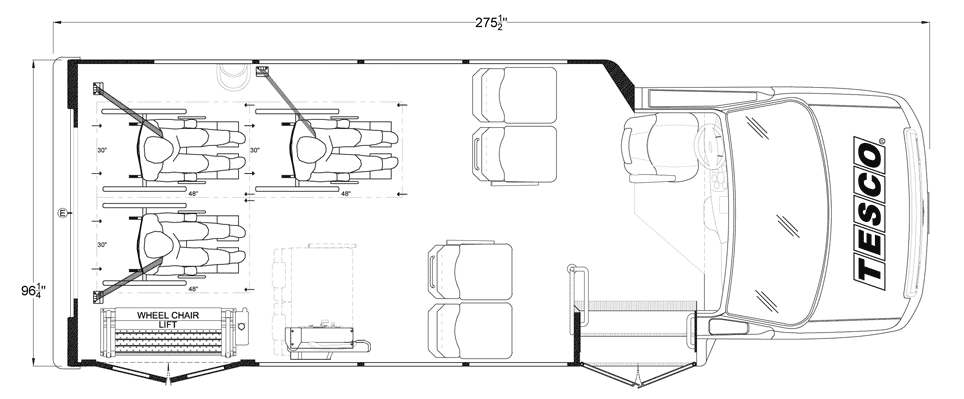

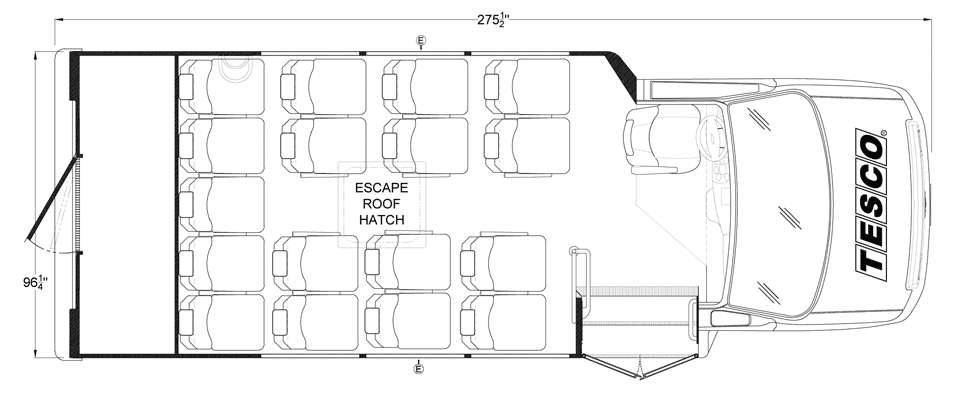

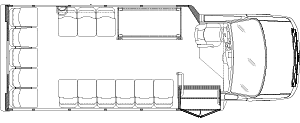

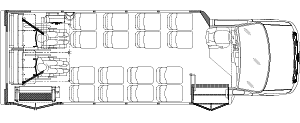

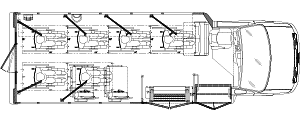

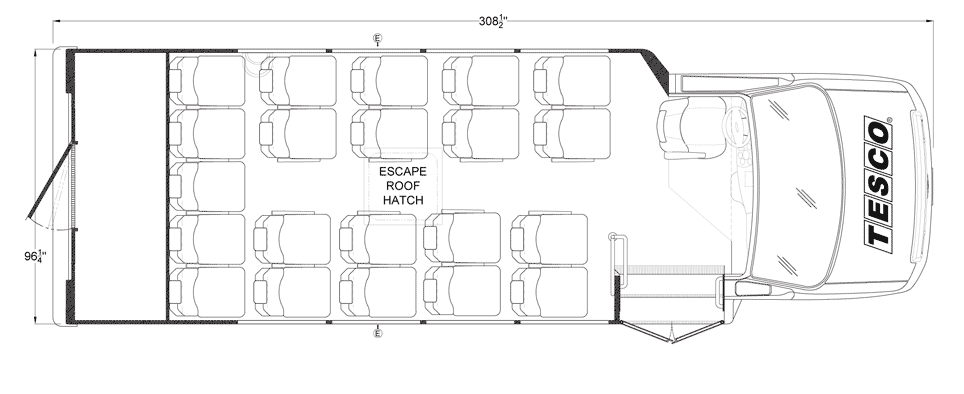

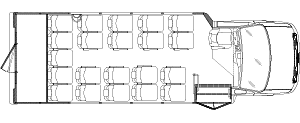

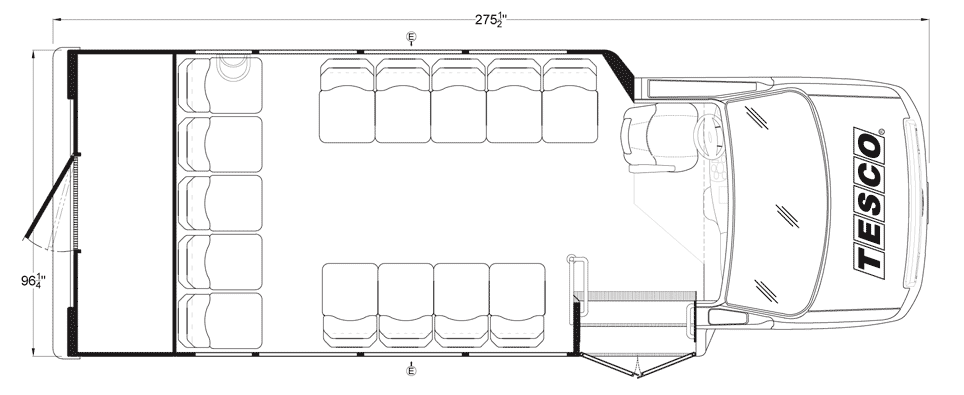

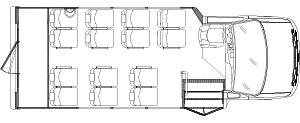

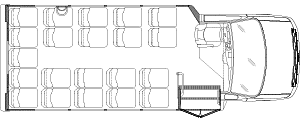

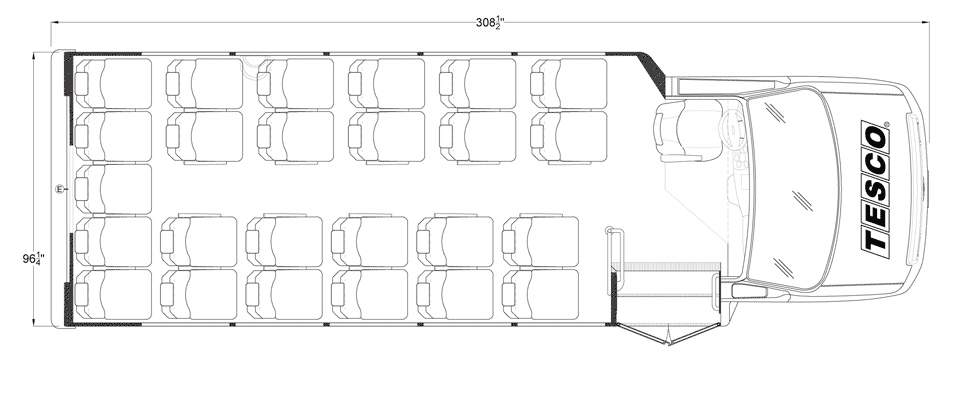

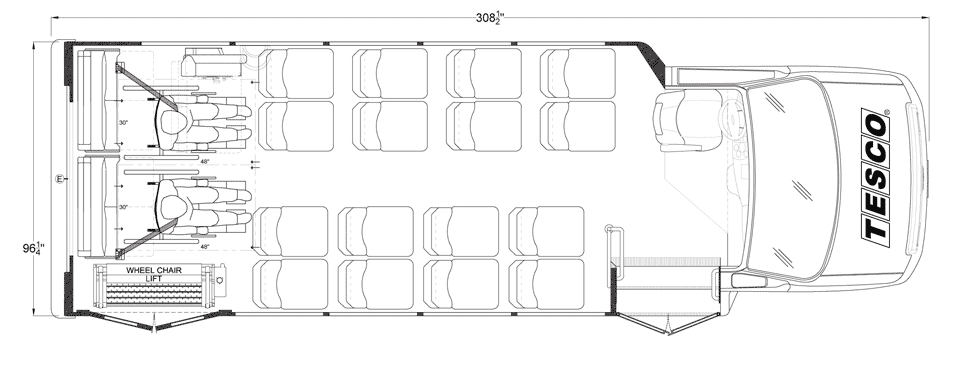

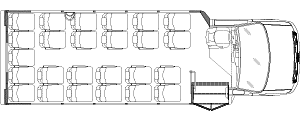

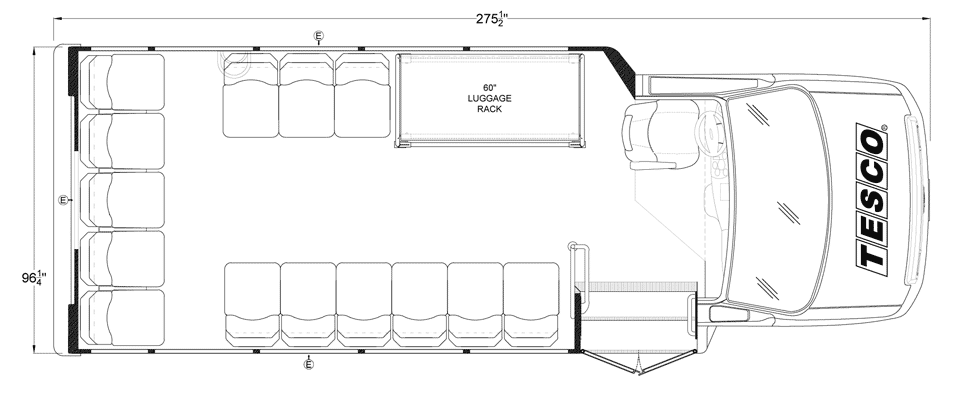

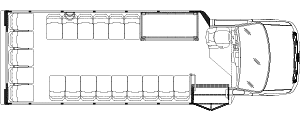

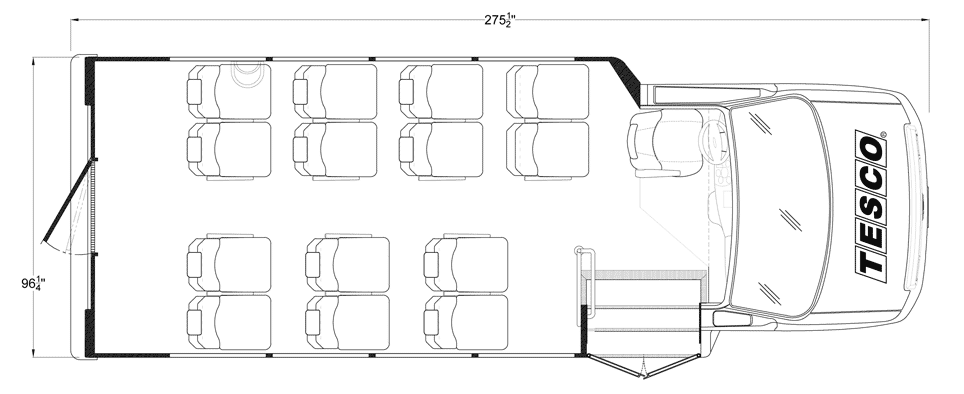

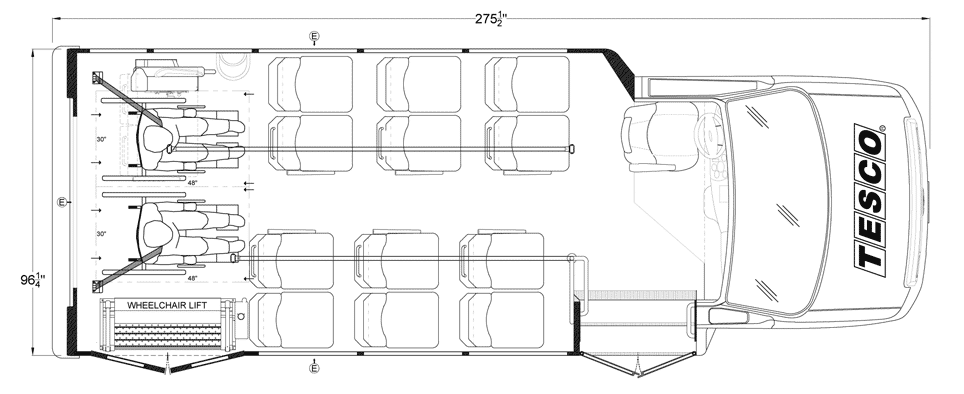

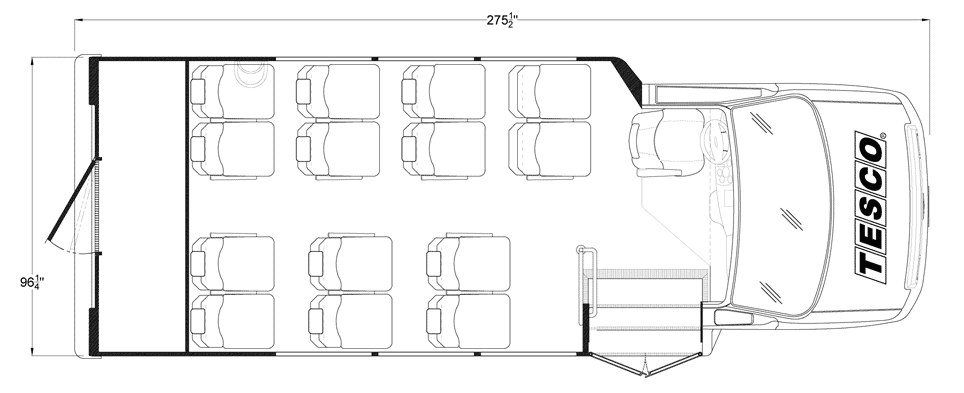

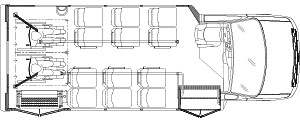

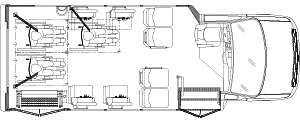

Floorplans
