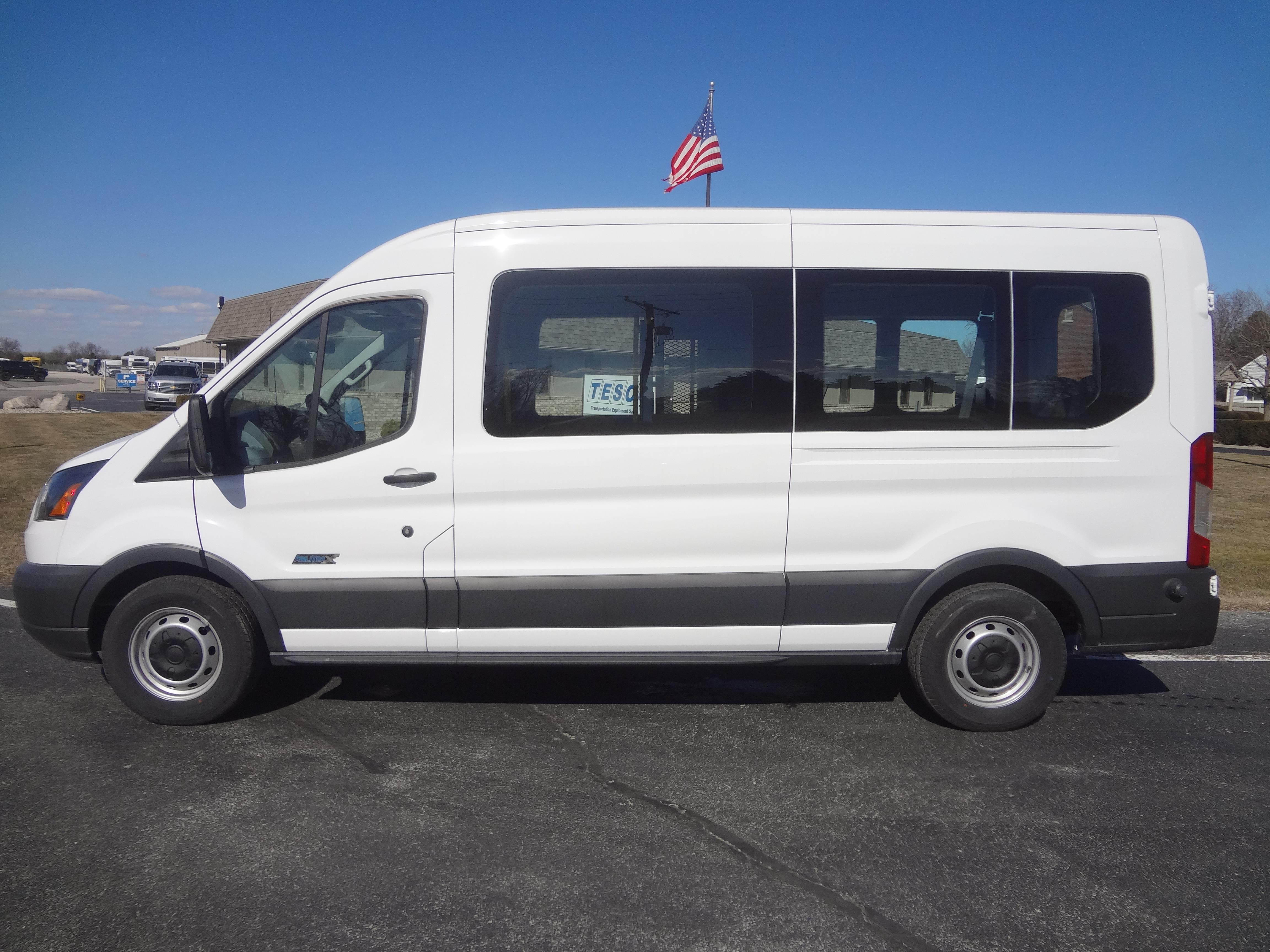

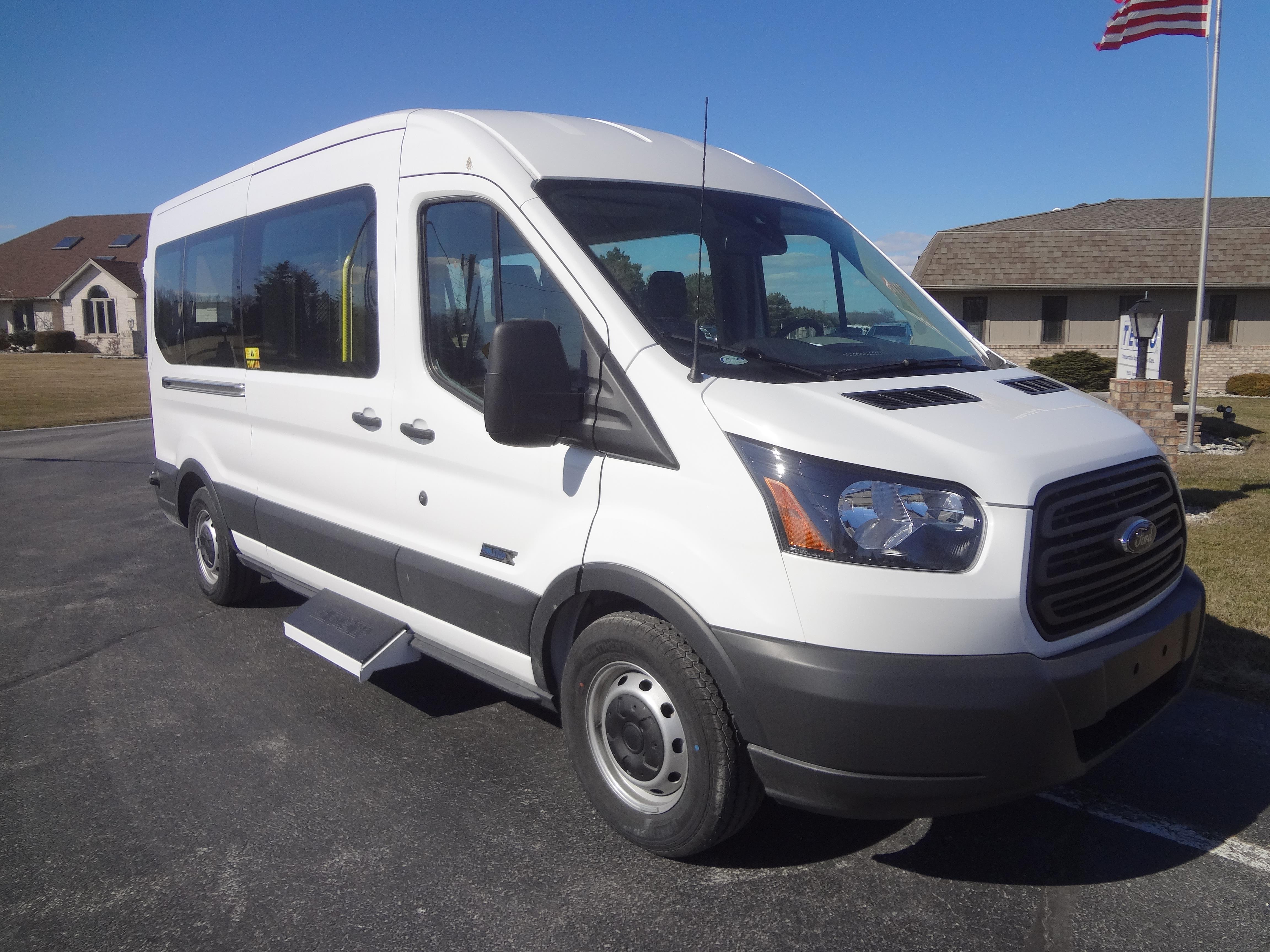

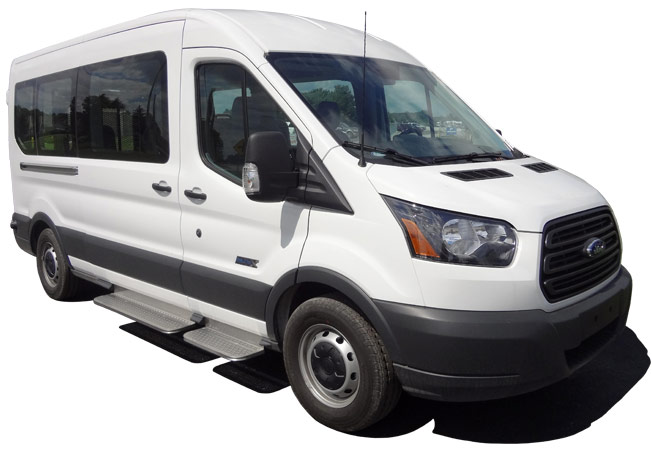

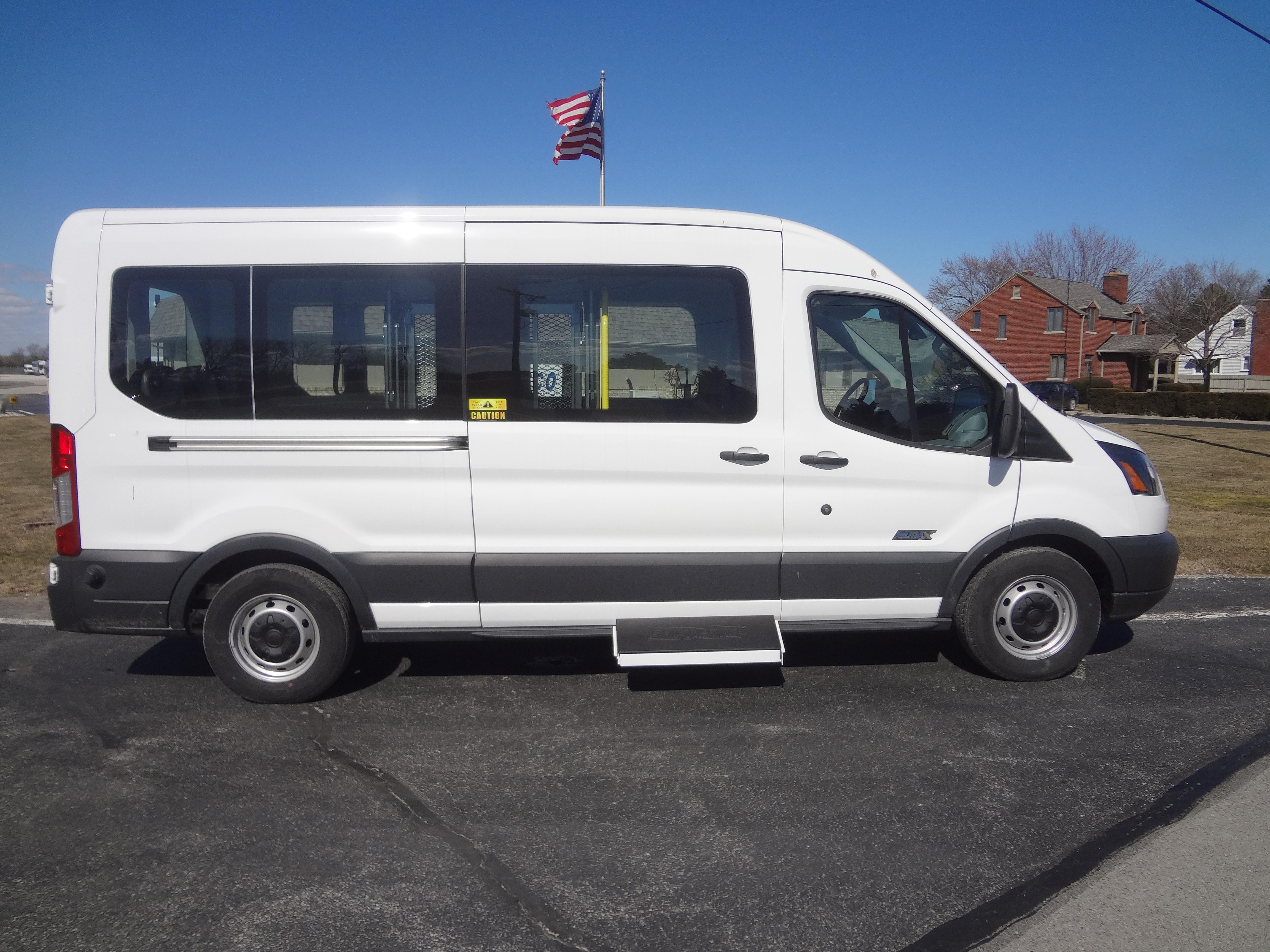

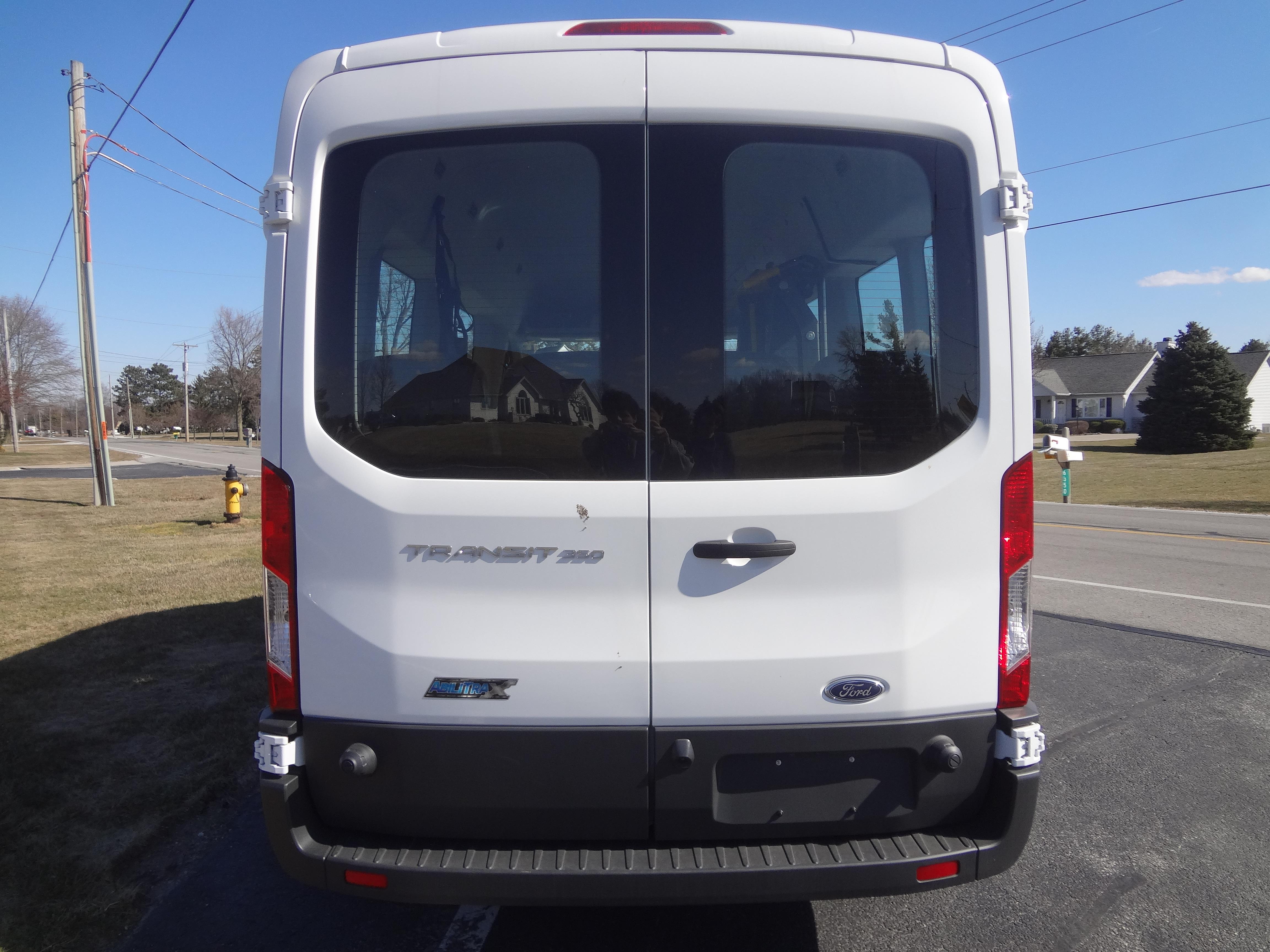

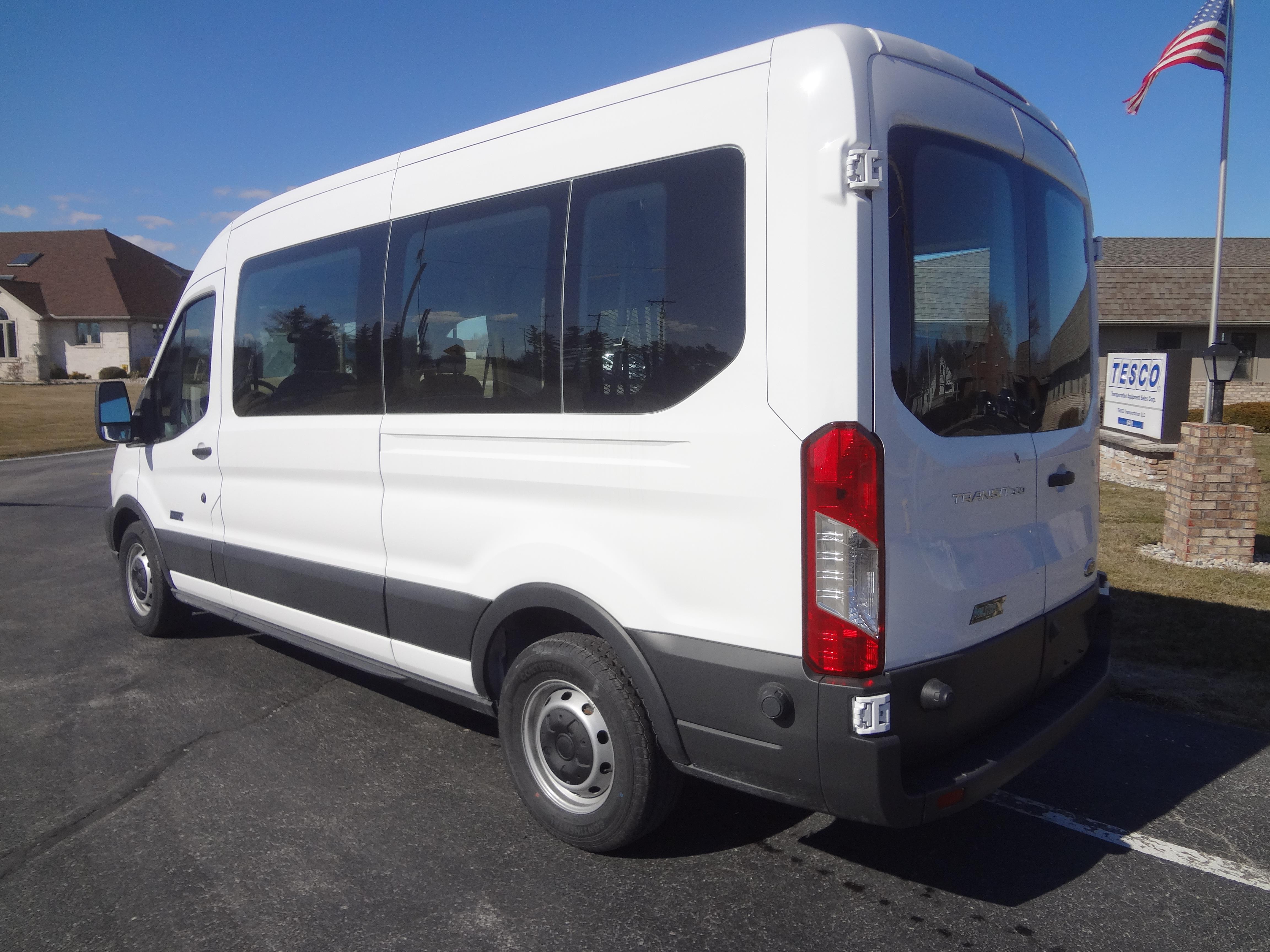

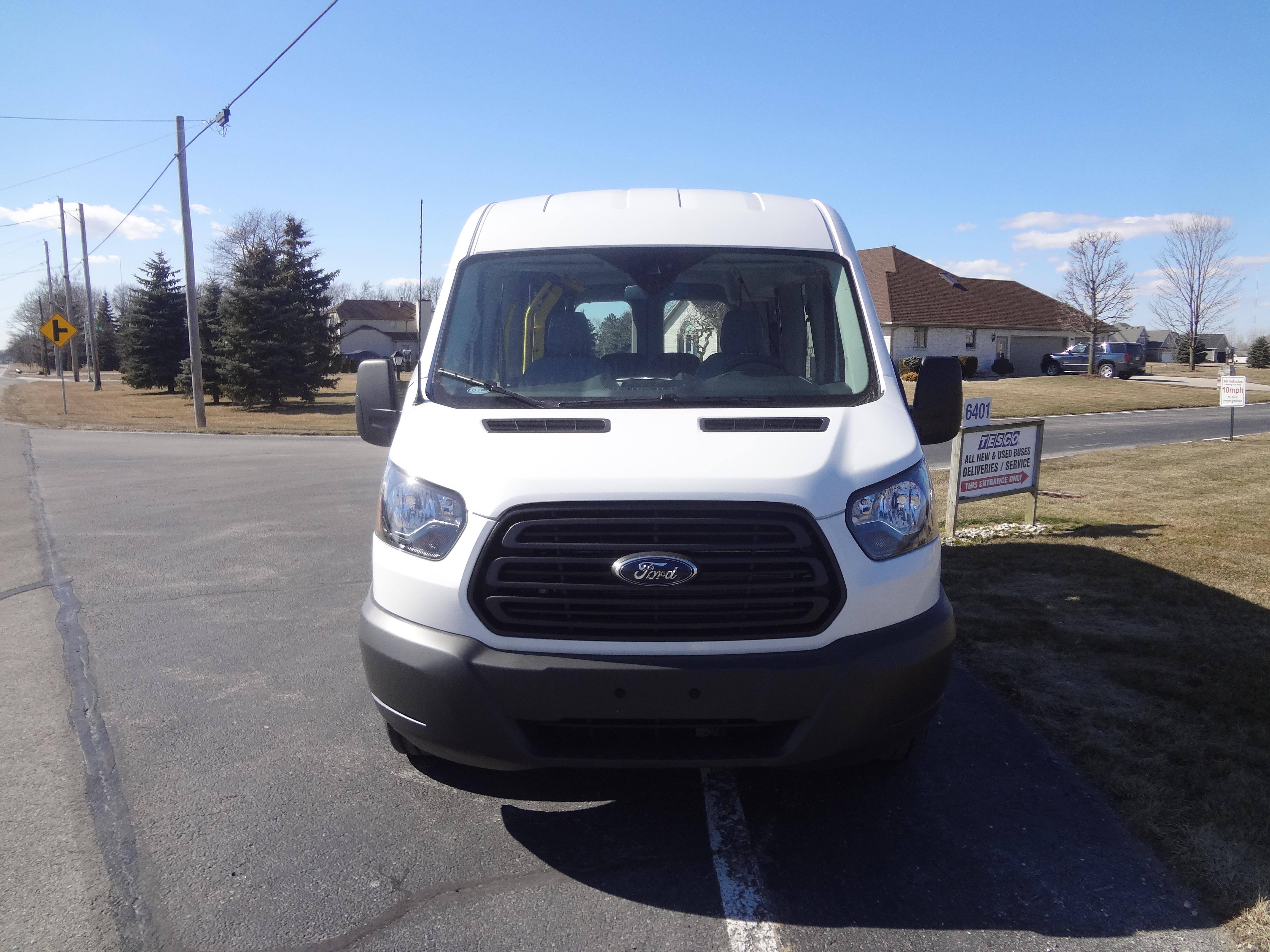

Vehicle Description

Parking Shuttle

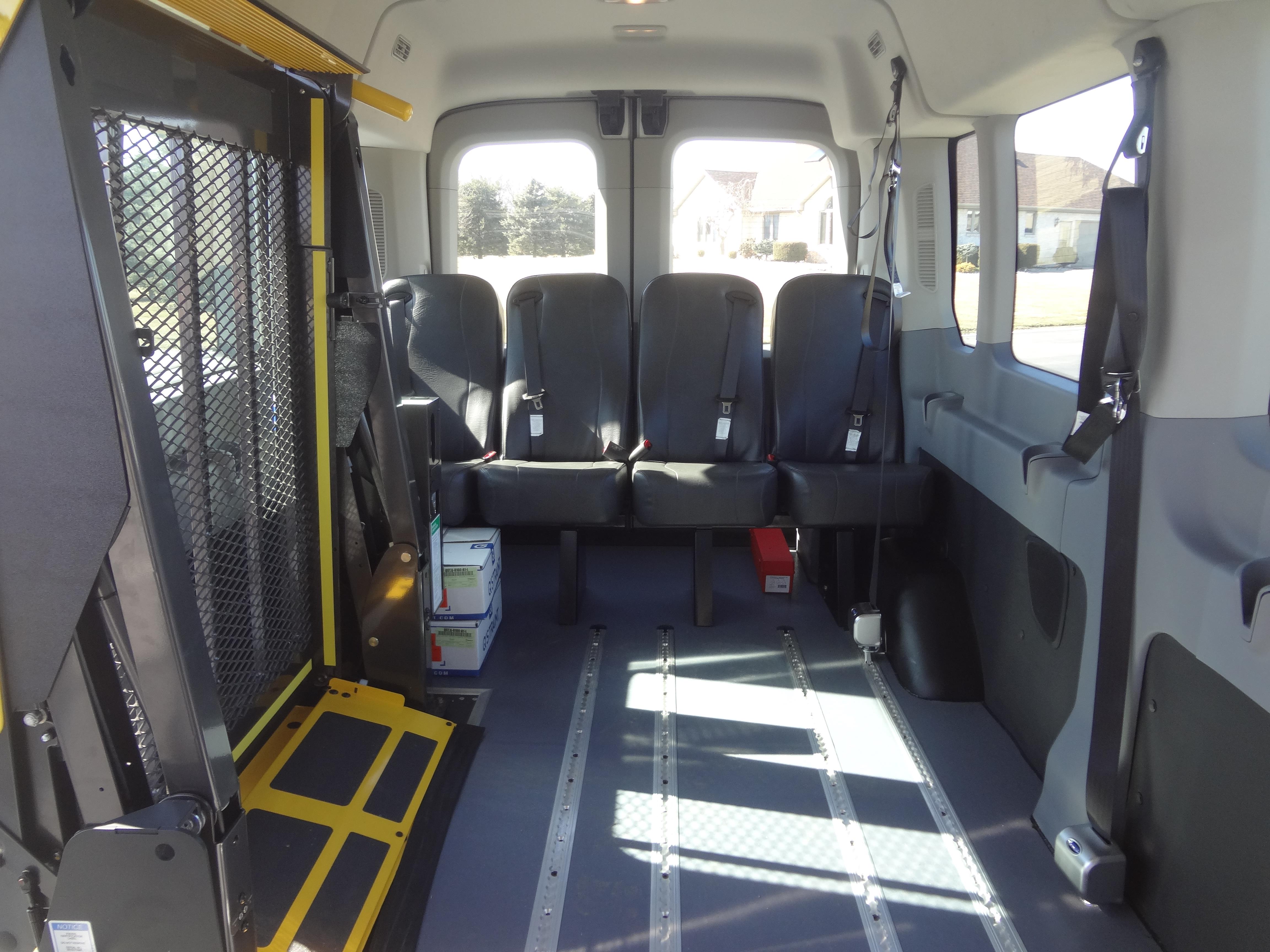

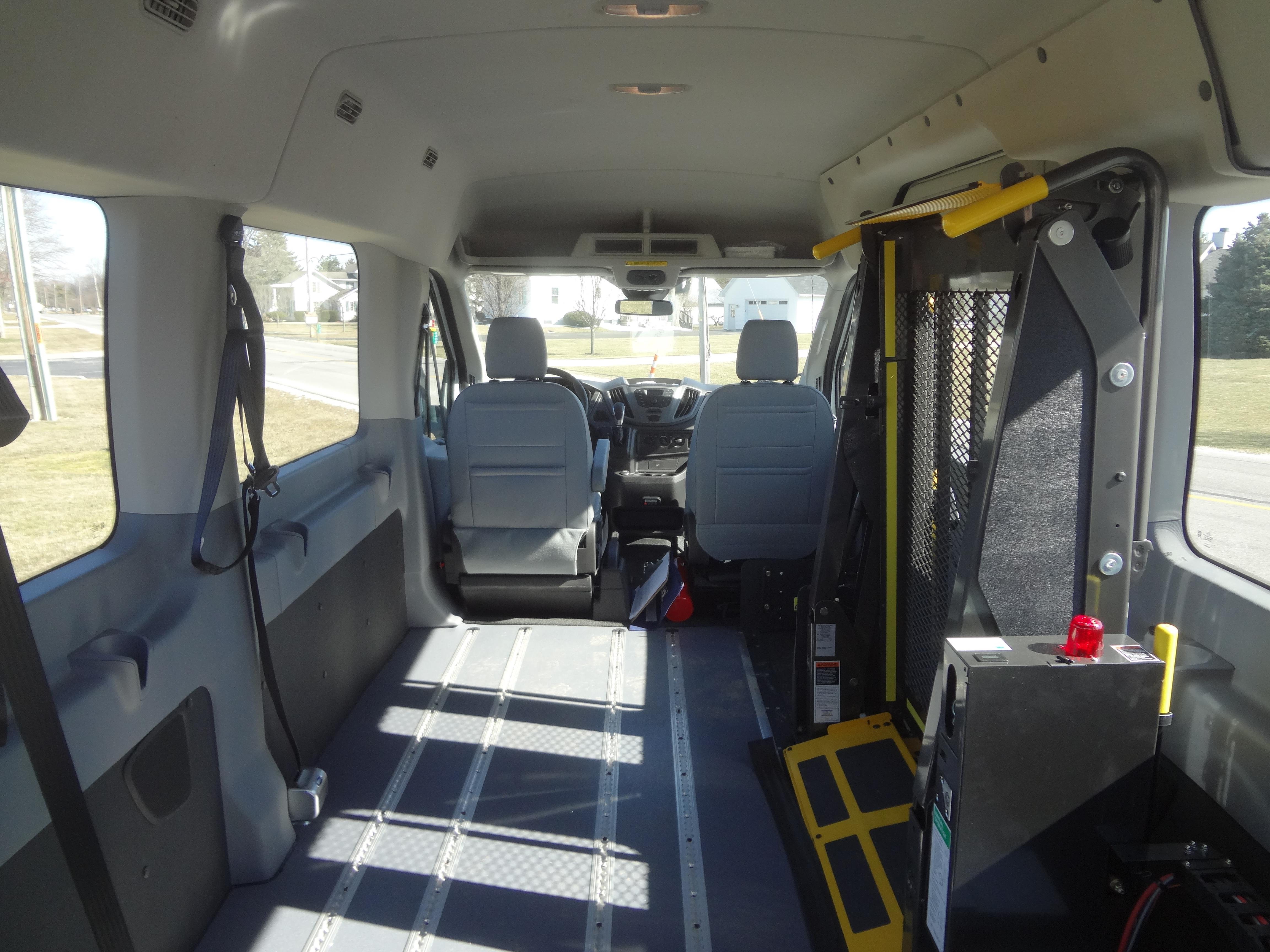

One Platform, Unlimited Flexibility... After several years of design, engineering and testing we are proud to offer the American Made AbiliTrax flooring Platform. This unique patent pending design allows your vehicles capabilities to change as quickly as your needs do. This system is intelligent enough for the complex needs of large fleets whom need immediate change for a variety of day to day business challenges or simple enough to allow for the flexibility of a family trip to include an occasional wheelchair user. Uniform Design AbiliTrax is the first system to implement a completely uniform design. The AbiliTrax "X" track rails are manufactured to a uniform consistency and installed using a uniform floor grid. This means the AbiliTrax platform installed in one brand of vehicle will have the same dimensional attributes as another brand of vehicle with the AbiliTrax Platform. Therefore fleets can have one common platform across a multitude vehicle applications. This common platform allows for sharing of component throughout the entire fleet from seats to wheelchair restraints to stretcher mounts. DESIGNED TO MEET OR EXCEED APPLICABLE FMVSS STANDARDS and FORD QVM

Features

Parking Shuttle Advantages
  • Universal Design allows interchangeable seating and accessories
  • Approved by Braun and Ricon for integrated lift installation
  • Hands Free & No Bending Required Quick Disconnect Seating
  • Heat Vents in the floor to evenly distribute factory Heat System
  • Accommodates both A & L Style Tie Down Fittings
  • Double Foldaway Bolts to Track System
Standard Features & Equipment
  • Unibody Structure
  • Power Door Locks
  • Power Windows
  • Remote Keyless Entry System
  • Cloth Headliner
  • Grab Handle - Front Passenger
  • Steering Wheel - Tilt & Telescoping
  • Overhead Console Storage
  • Center High-Mounted Brake Light - LED
  • Power Mirrors
  • Back Bumper w/ Integral Step
  • Lighting - Rear Compartment
  • Glass - Solar-Tinted
  • 12-Volt Powerpoints (3)
  • Ford Transit 3.7L V6
  • Transmission - 6 Speed
  • Alternator - 230 amps
  • Brakes - 4-Wheel Anti Lock
  • Fuel Tank 26 Gallon
  • Intelligent Oil-Life Monitor
  • Rack & Pinion Steering Power
  • AM/FM Stereo Radio
  • Cruise Control
  • Dual AC & Heat
  • Tires - 235/65r16 All Season BSW
  • Grille - Black w/ Black Surround
Optional Equipment
  • Transit Passenger Running Board Kit 8"
  • Flip Seat Step N Lock Ash Grey Vinyl Street Side 3pt
  • Abilitrax Installation
  • Transit Passenger Shoulder Belt Mounting Kit Assem.
  • AbiliTrax Grab Bar Kit B Pillar Side Door Entry

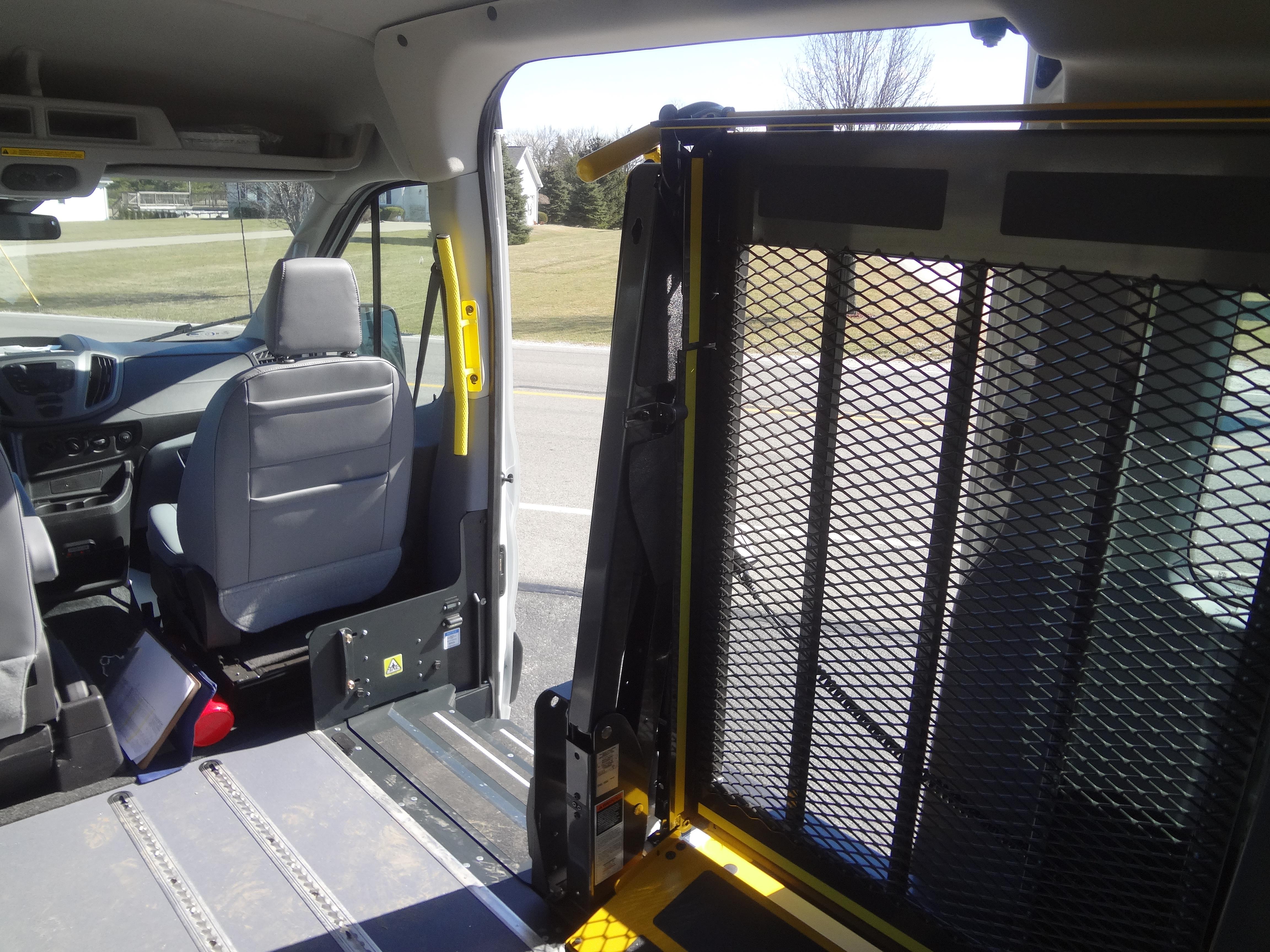

  • Braun Century Lift 34 x 51 Raised Pump
  • AbiliTrax Standard Rear Lift Kit 800#
  • Transit Cargo Running Board Kit 8"
  • Surface Mount L-Track w/ Angled Edges for Shoulder Belts
  • Transit Driver Running Board Kit 8"
  • Step N Lock Seat Base Assem.
  • Transit Driver Shoulder Belt Mounting Kit Assem.
  • QRT Deluxe Retractors
  • AbiliTrax Q'Straint Storage Bag - Black
  • Ford Transit Braun Lift ILIS Interlock
Seating Options

At TESCO Bus, we want the process of purchasing a bus to be as easy as possible. Finding the perfect seat for your bus may seem overwhelming, but we are here to help. We are a distributor for Freedman seats, the most common of all seating in the transportation industry. Freedman offers endless amounts of seating types from the low back vinyls to the high back recliners, both common choices amongst our customers. To take a deeper a look at some of the Freedman seats and products that TESCO offers, click here.

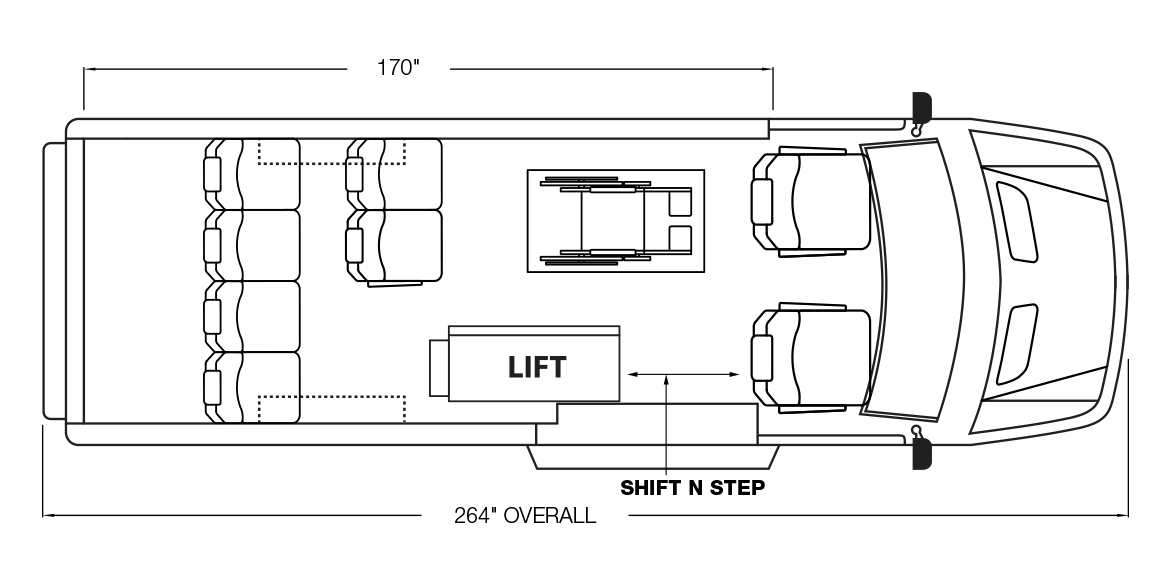

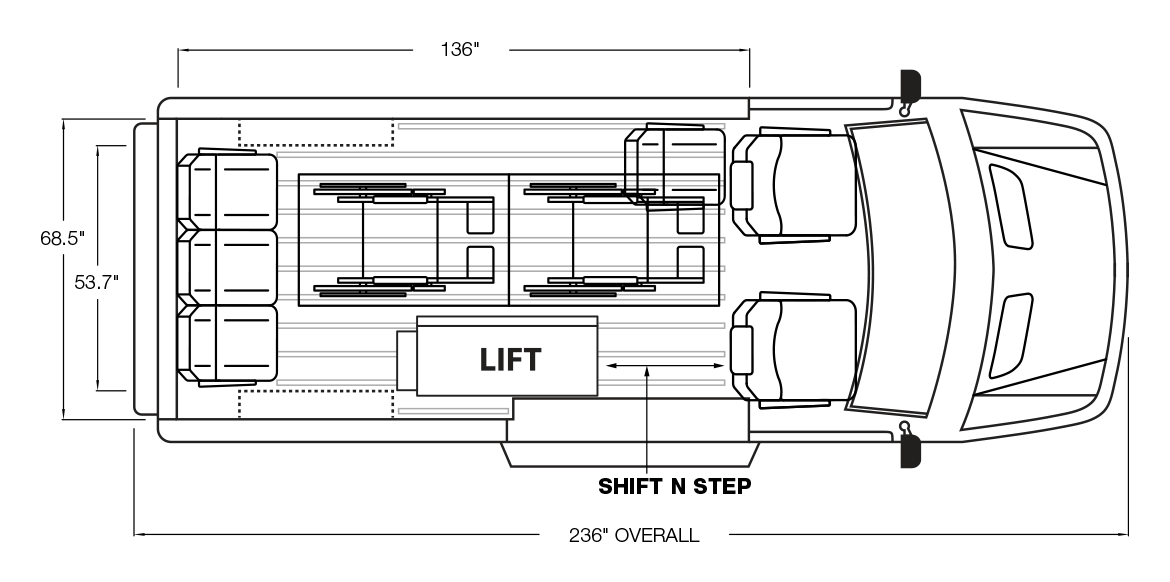

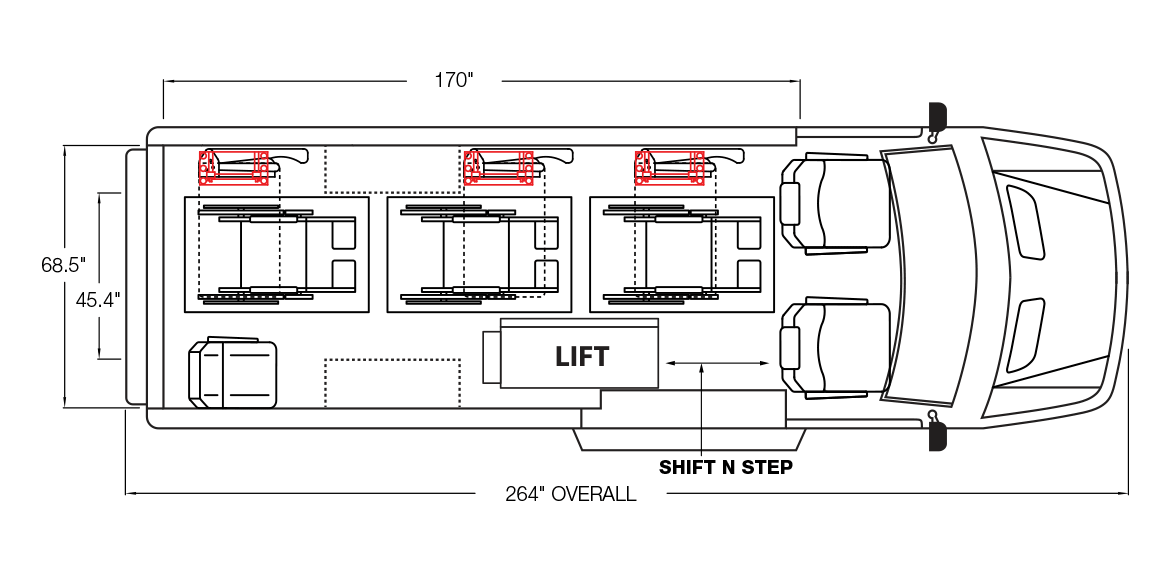

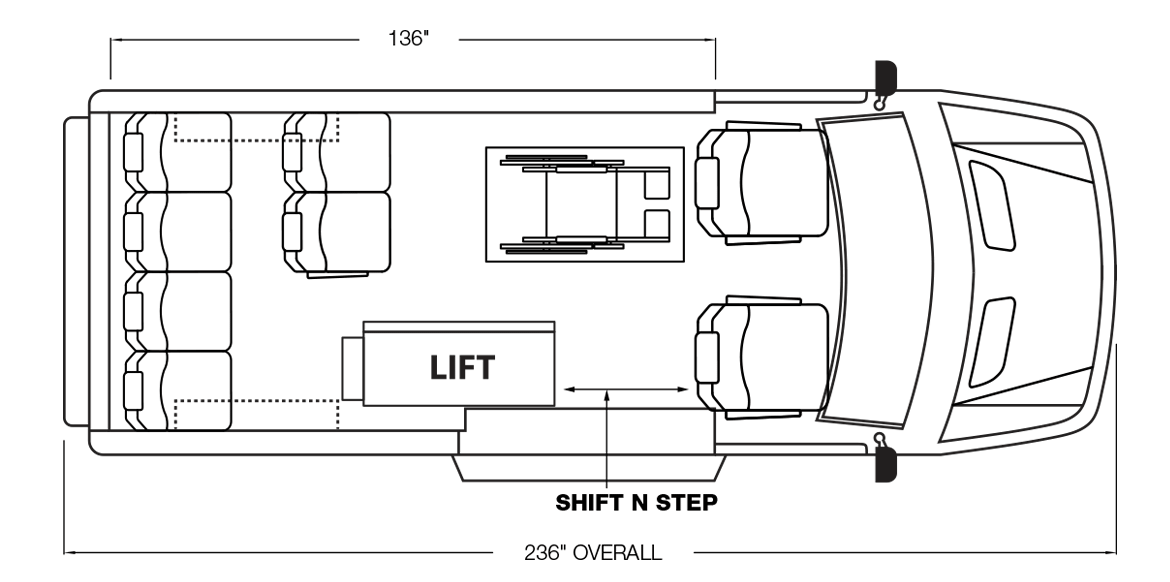

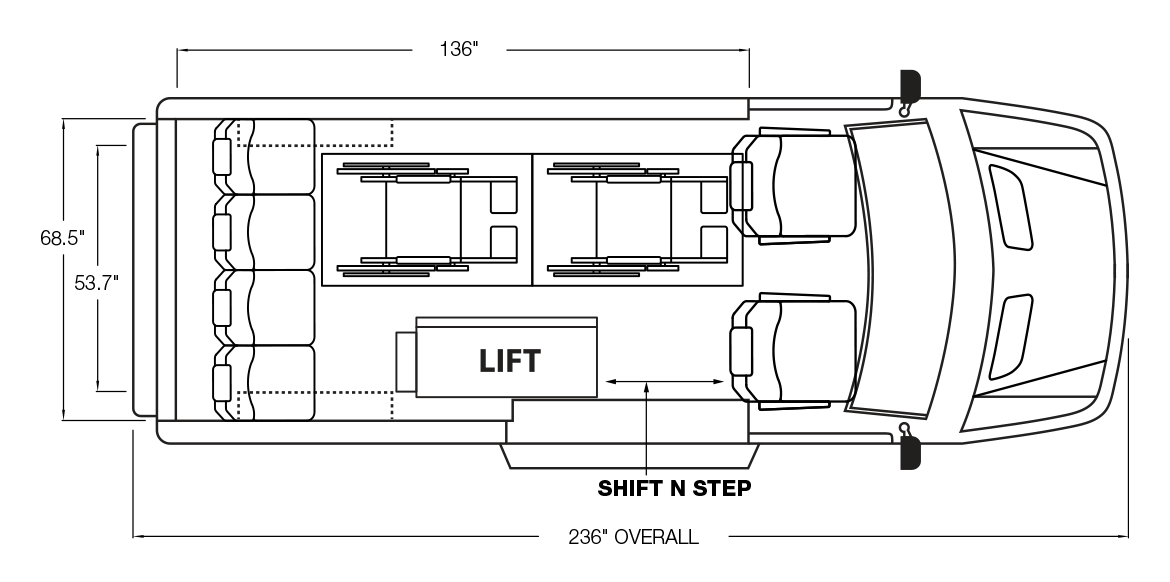

Floorplans

Dimensions

  • Passengers (Adult): 8-15
  • Roof Height: 99" or 108"
  • Wheelbase: 130" or 148"
  • GVWR: 8,550#, 9,400# or 10,360#
  • Transmission: Automatic
  • Engine: 3.7L Ti-VCT V6 gas, 3.6L EcoBoost V6 gas, or 3.2L PowerStroke I-5 Turbo Diesel
