Vehicle Description

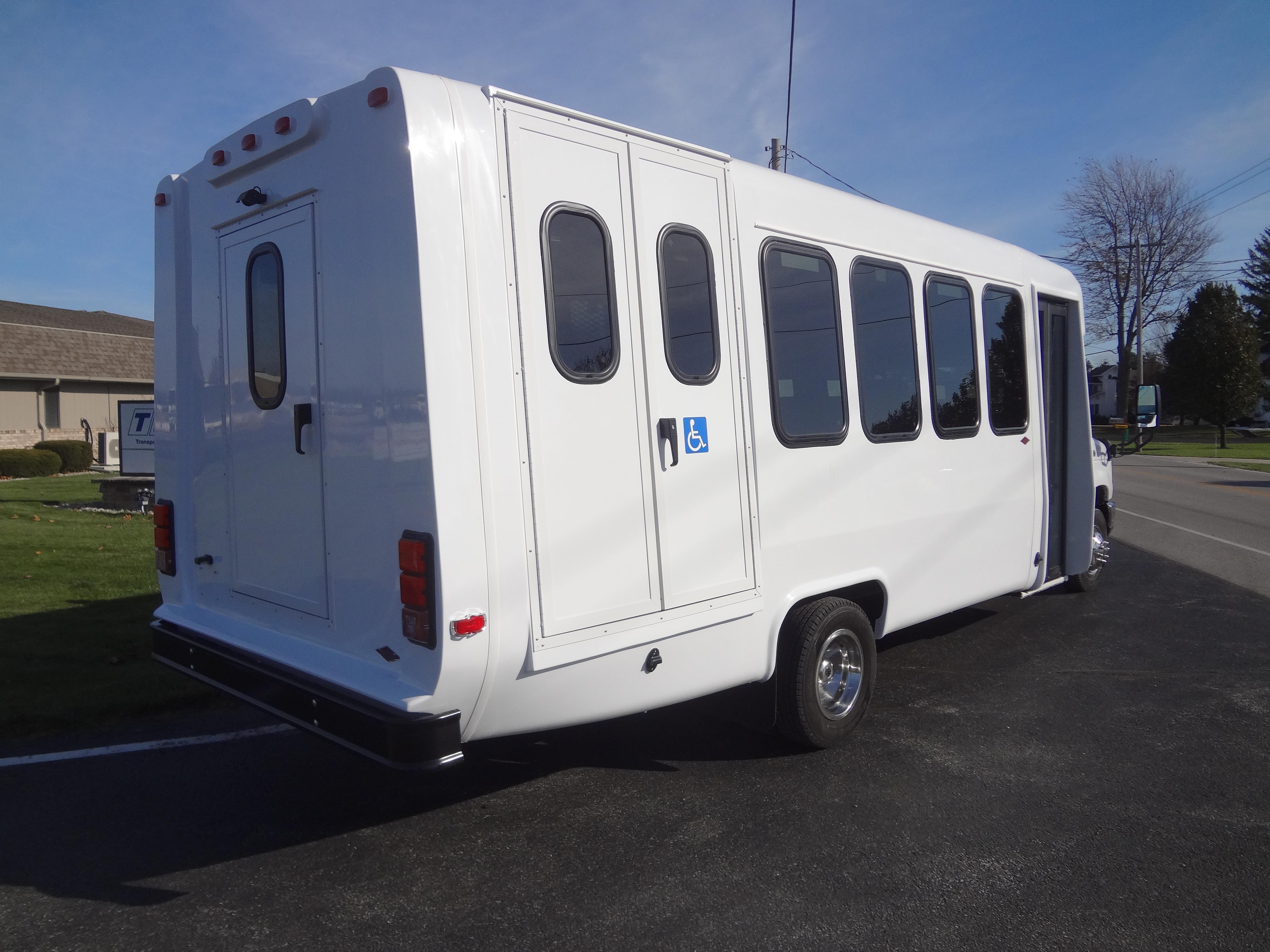

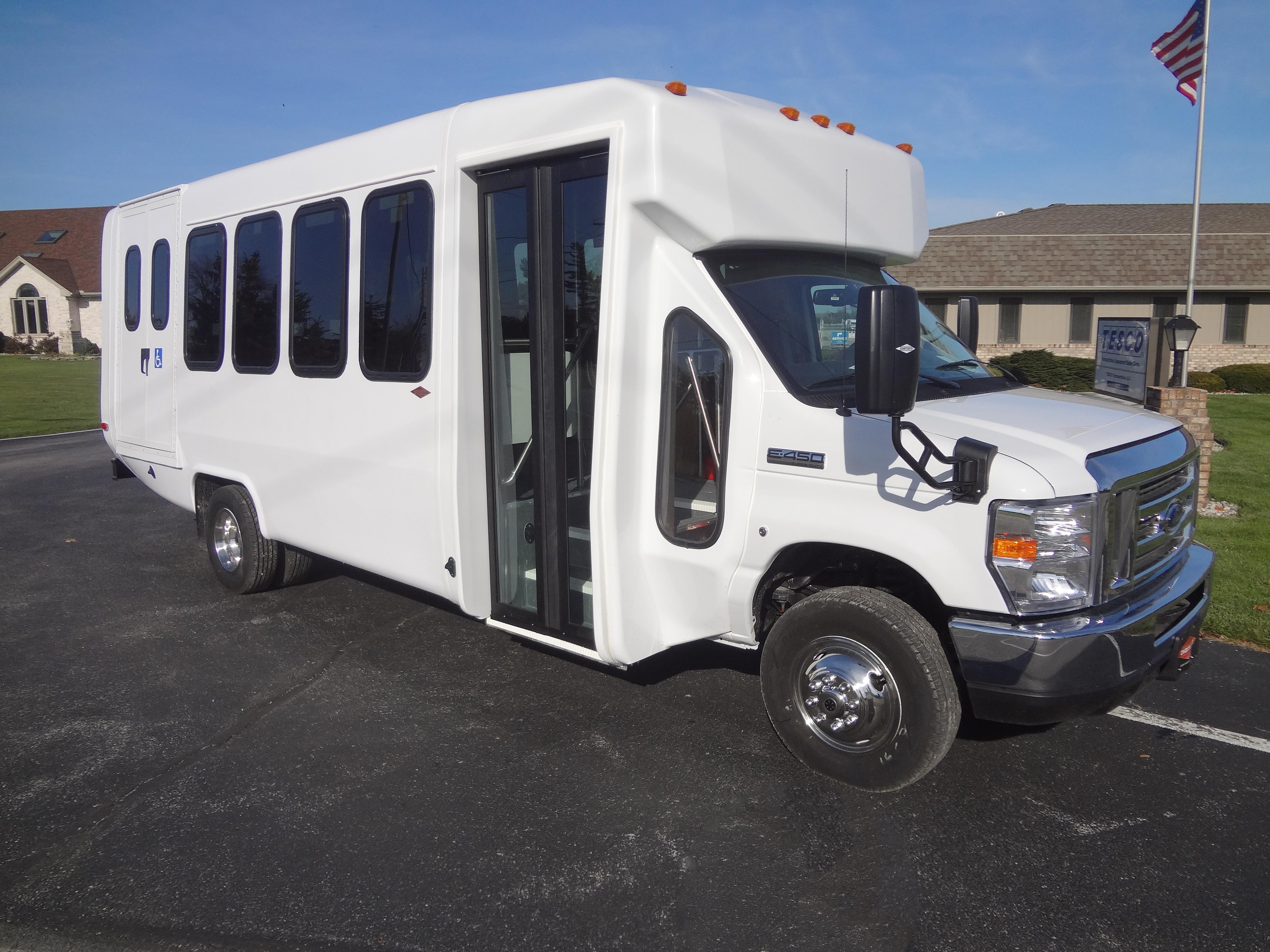

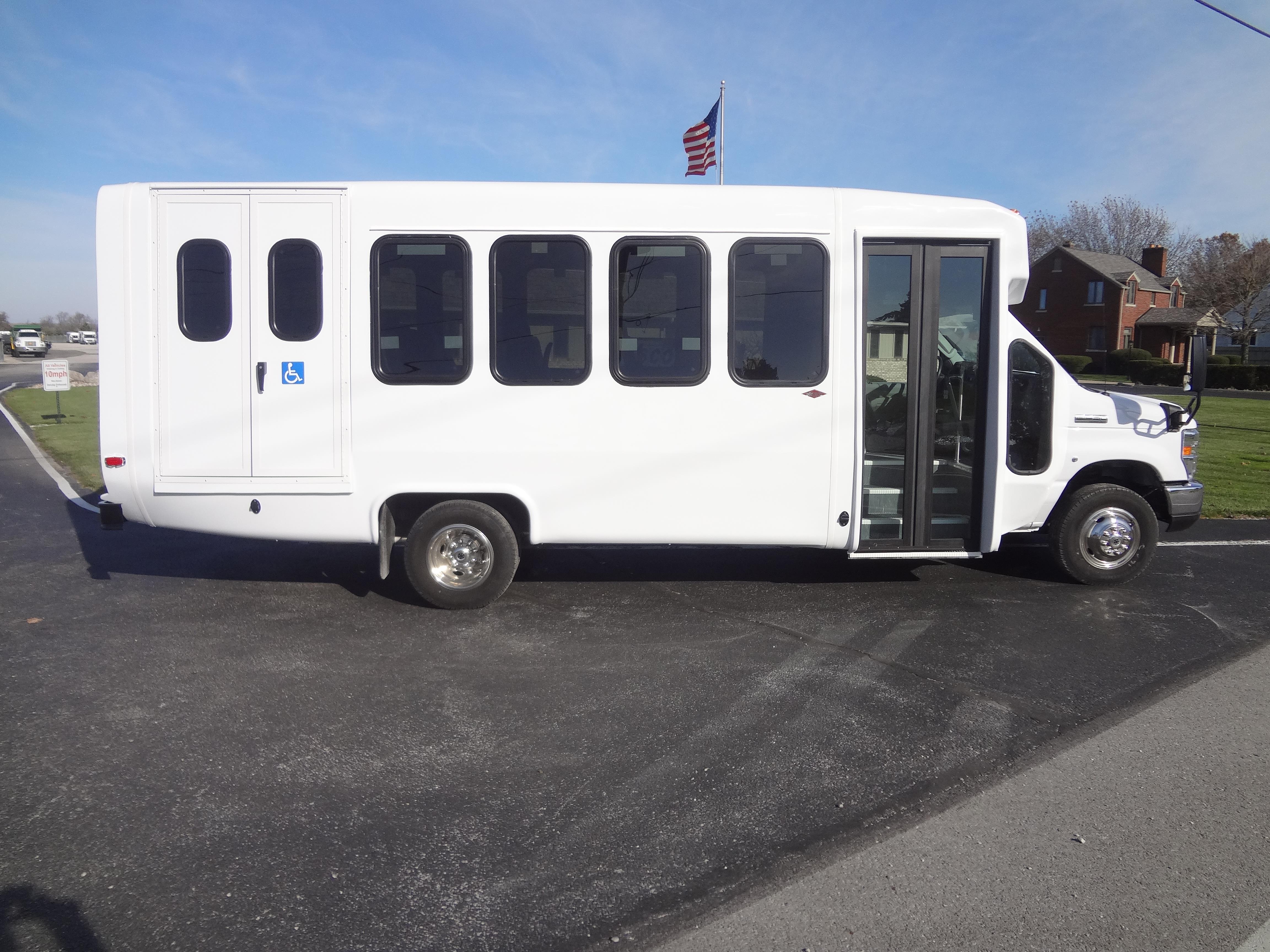

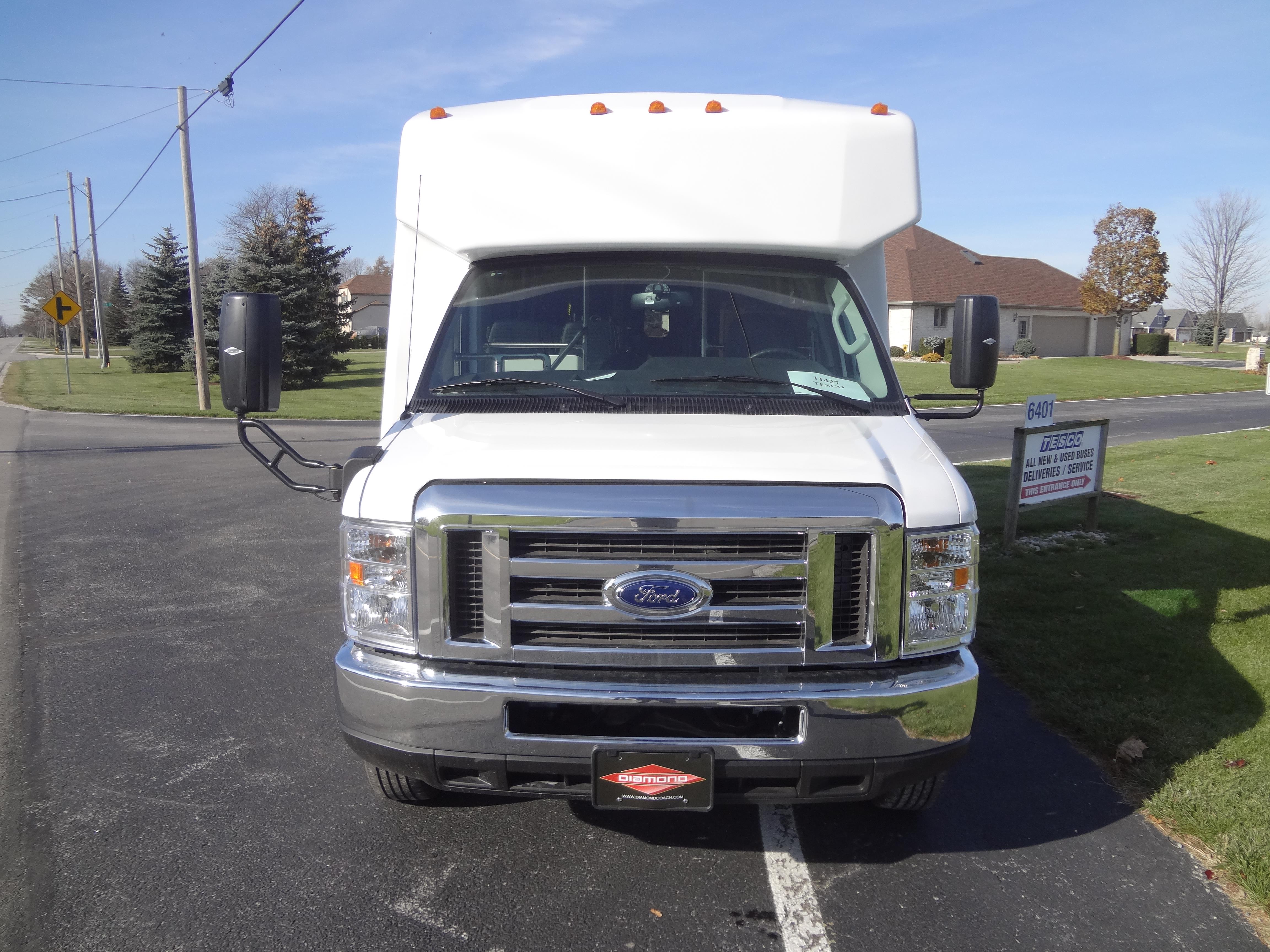

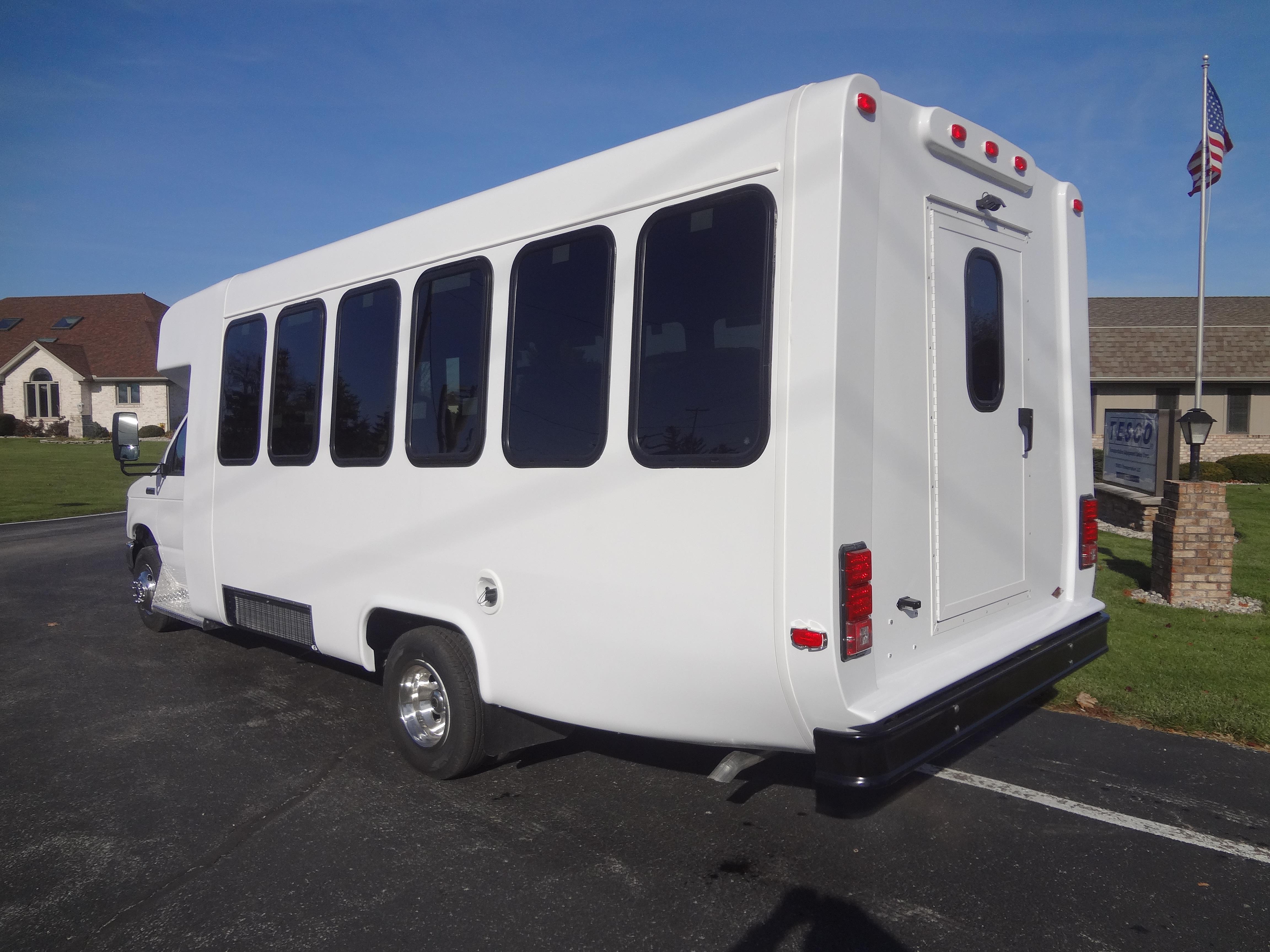

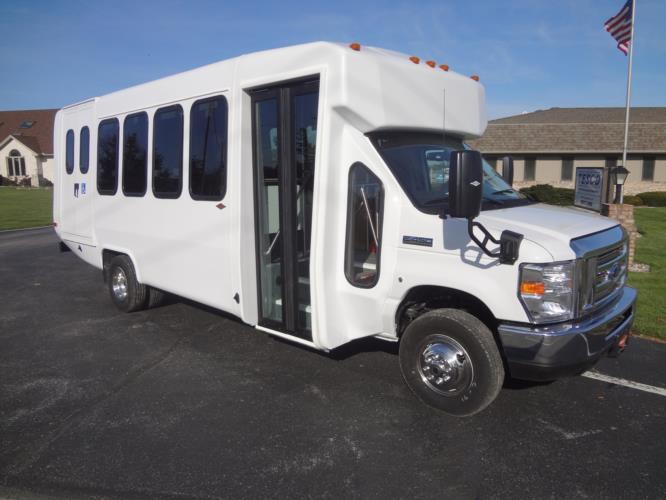

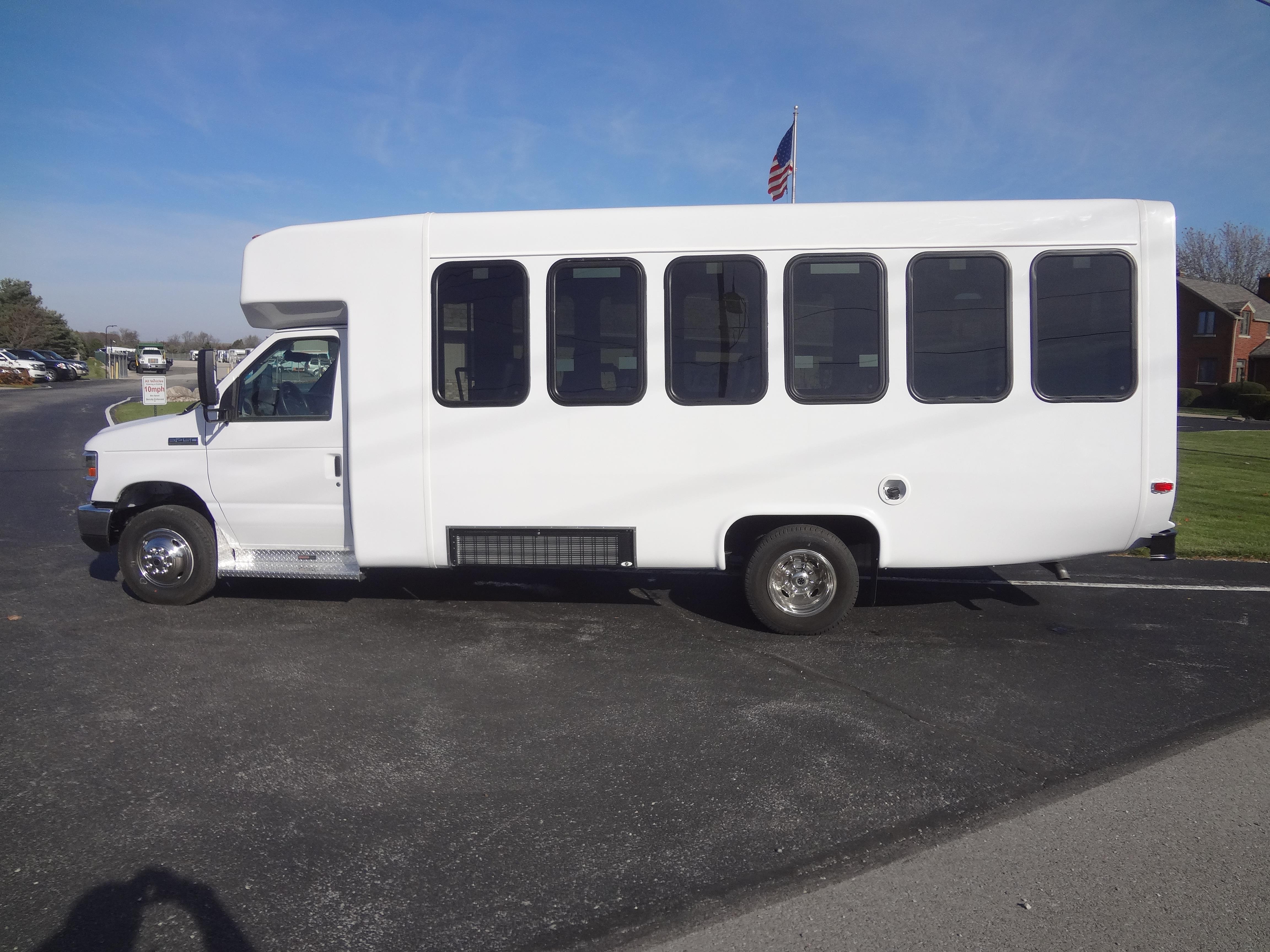

Diamond Coach VIP 2500

Fast Fact: Diamond Buses provide incredible cost-savings and resale value. Our design answers the two biggest issues with reselling a bus: the cost of repairs, and the look, or quality of the used bus.

First, Diamond buses do not fade, and do not need to be repainted. You can restore the original finish by simply hand-washing and applying a light buff job to the exterior. In contrast, metal buses require re-painting to cover fading and rust at the time of resale.

Second, Diamond buses resist dings, scrapes, bumps and scratches better than metal due to the gel coat exterior. As a result, Diamond buses look newer at resale than their counterparts.

DESIGNED TO MEET OR EXCEED APPLICABLE FMVSS STANDARDS and FORD QVM

Features

VIP 2500 Advantages
  • Rust Free
  • Impact Resistant
  • Smooth, Quiet Ride
  • Superior Temperature Efficiency
Standard Body Equipment
  • Composite/Honeycomb Construction
  • Fabric Ceiling Panels
  • Rosco Mirrors
  • Raised Floor
  • ABS Light Bars
  • Fiberglass Step Well
  • Roof Hatch
  • Black Anodized Aluminum Finish Entry Door
  • Electric Entry Door
  • RCA Rubber Floor
  • ABS Walls
  • Interior LED Lights
  • Fully Undercoated
  • Powder Coated Bumper (Rear)
  • Exterior LED Lights
  • Entrance Door Modesty Panel
  • Egress Windows
  • Roof Hatch
  • Solid Windows
  • Composite Wheel Wells

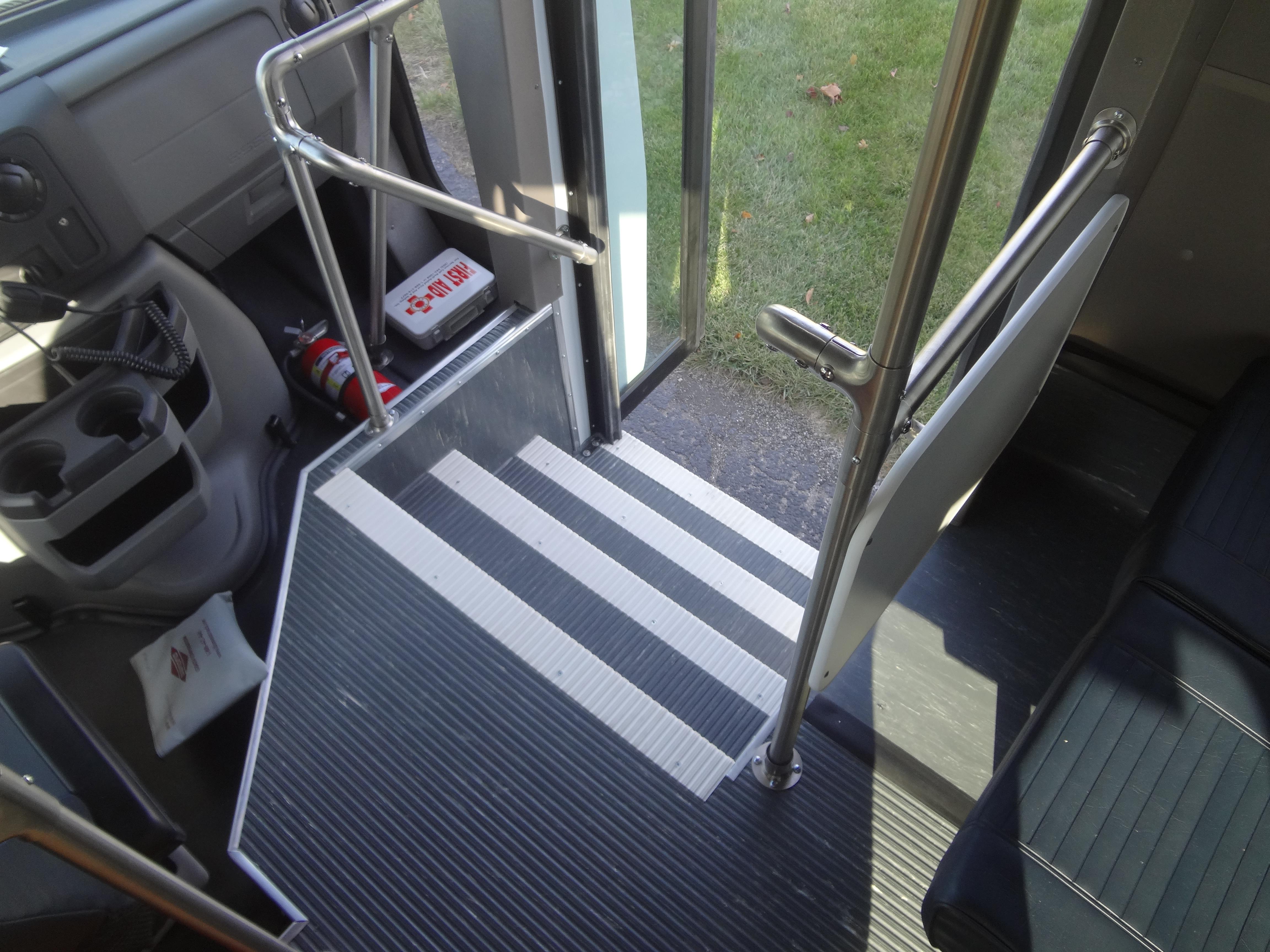

  • Composite Entry Steps
Standard Chassis Equipment

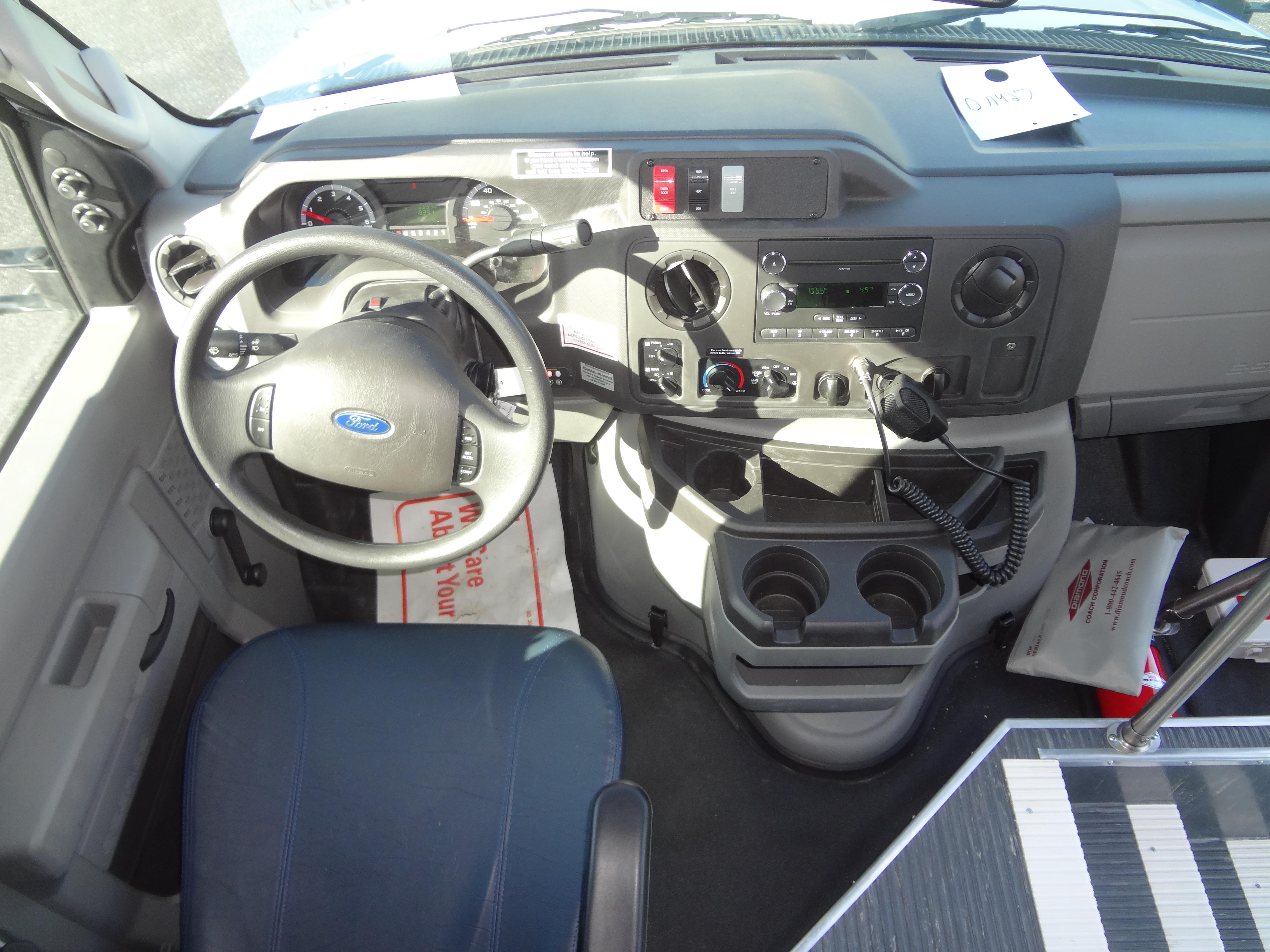

  • Ford E450 6.8L Gas
  • 14,500# GVWR
  • 225 amp Alternator
  • 40 Gallon Fuel Tank
  • AM/FM/CD Radio
Options
  • (10) Armrest Non Padded
  • Backup Alarm
  • Backup Camera - Rearview Mirror
  • Braun Century-2 Rear Pump
  • Cover, Wheelchair Lift, Vinyl

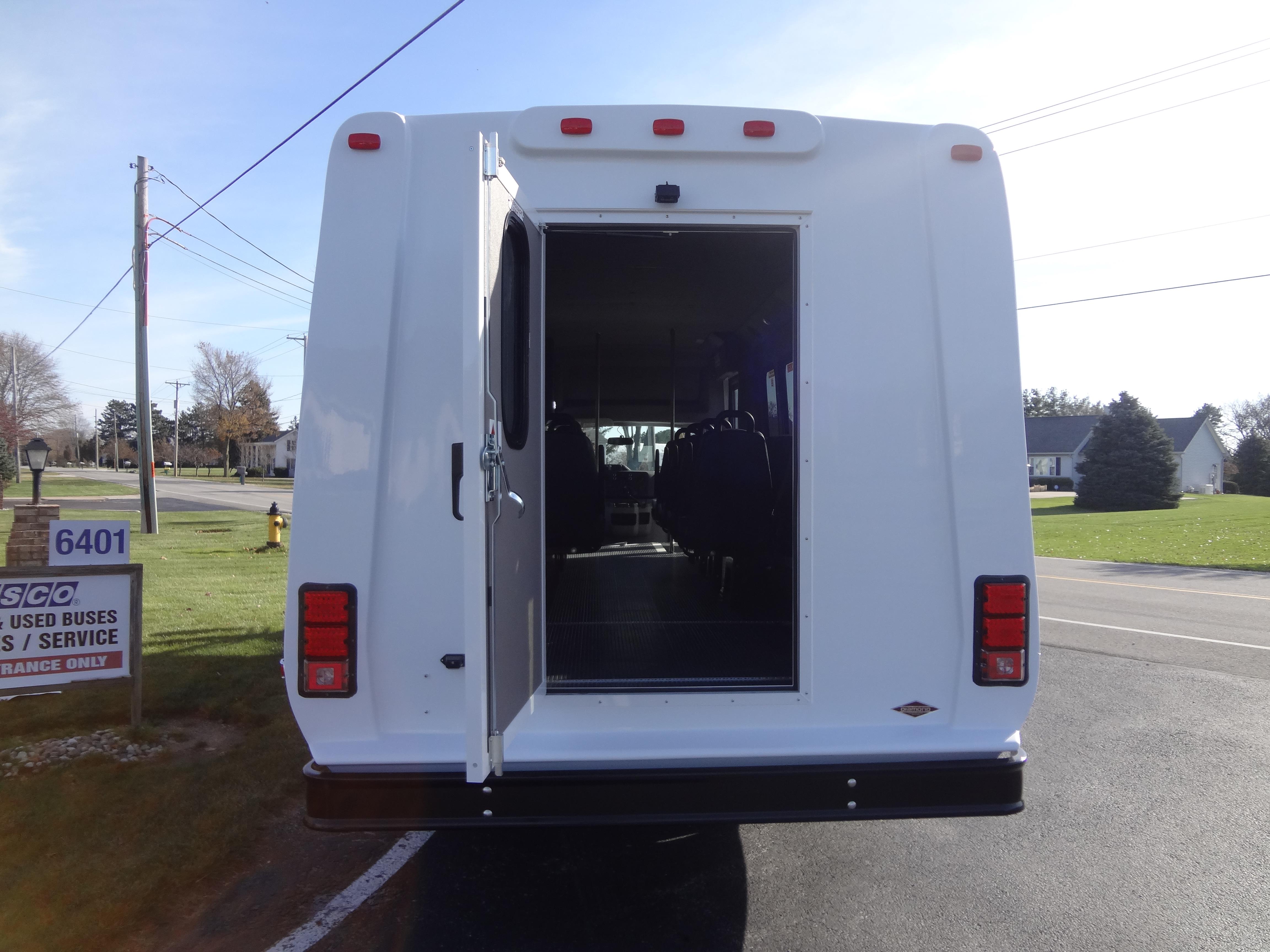

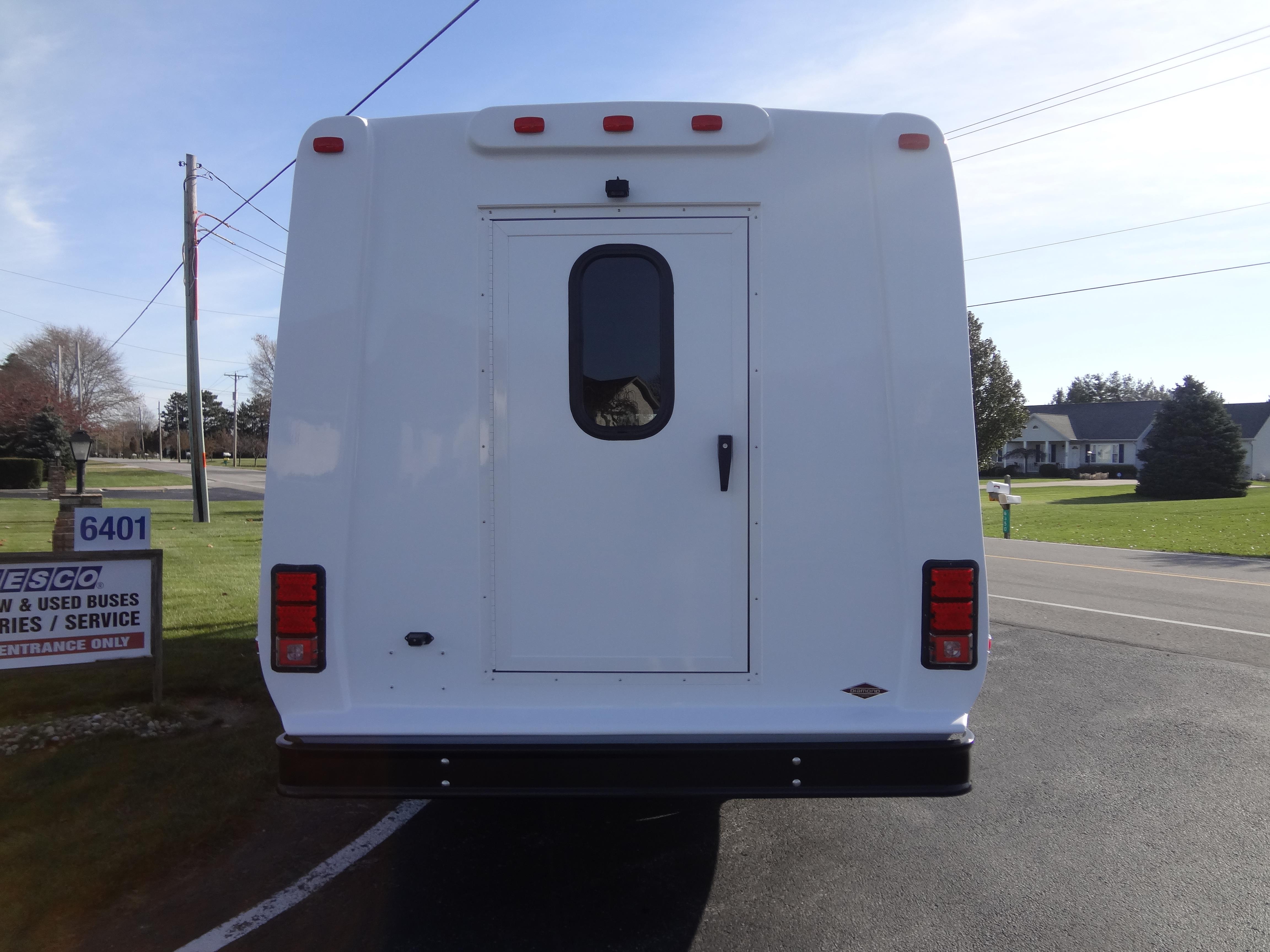

  • Door, Rear 34" x 60" w/ Upper Window 12" x 24"
  • Drip Molding, Full Length (Both Sides)
  • Driver Seat Freedman Shield Recliner w/ Lumbar
  • Exhaust Run to Driver Side - Side Discharge
  • Floor, 4 Step Entry No Wheelwells (Raised Floor, 3")
  • Flooring Gray Ribbed (Aisle)
  • Flooring Gray Rubber Smooth (Under seats)

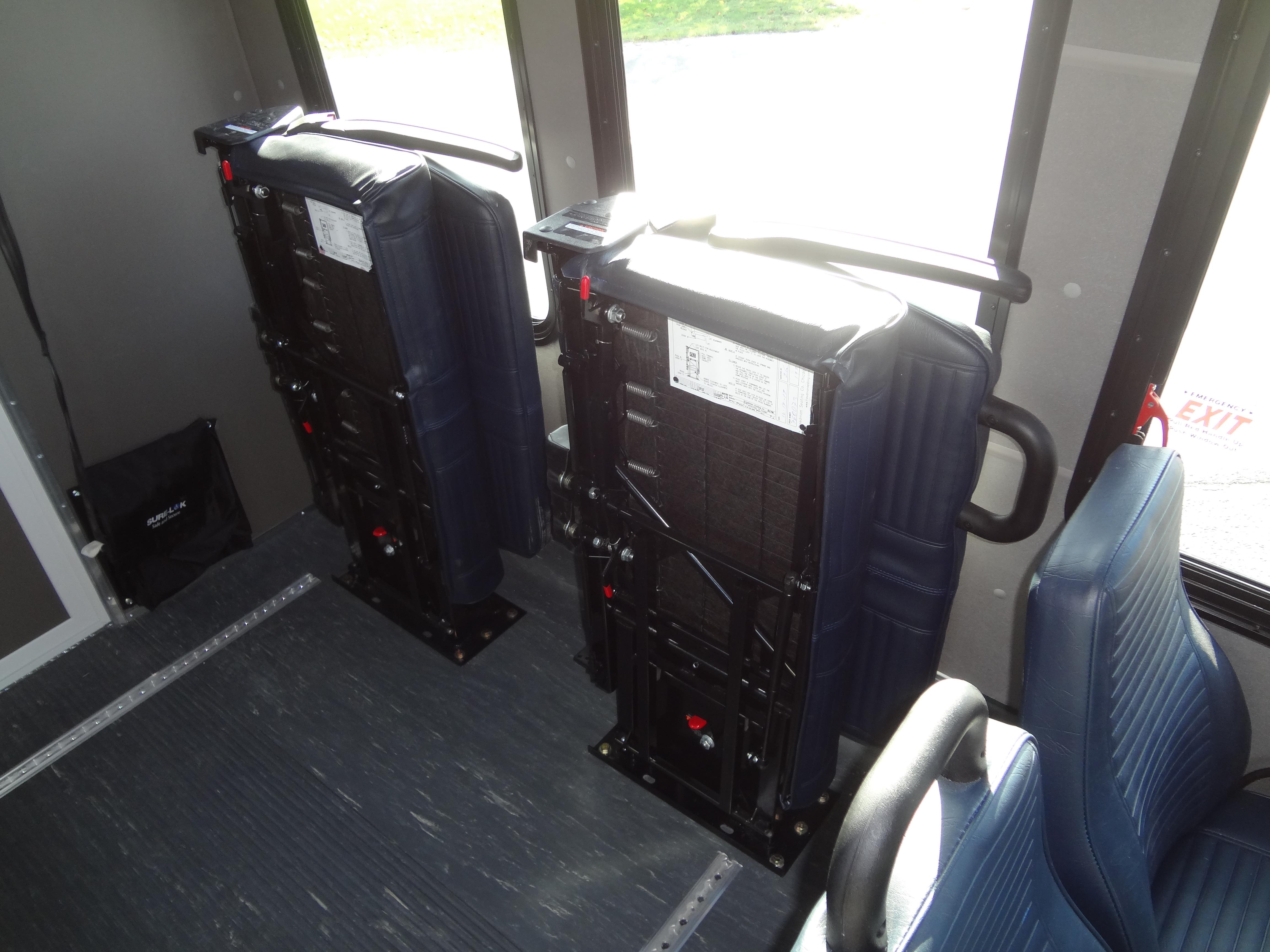

  • (2) Foldaway Mid High Dbl. 35" w/ Lap Belts
  • Front Mud Flaps
  • (9) Grab Handle Anti-Vandal Aisle Side
  • Grab Rail - Entrance, Right Hand
  • Heater, Rear 45K BTU (3 Year Warranty)
  • Kubota Electric Key
  • (20) Level 1 Fabric (Oxen Dark Blue #642)
  • MCC - AC-7W103 Max Rear Evap 70K BTU In Wall Evap TM16 CM-3

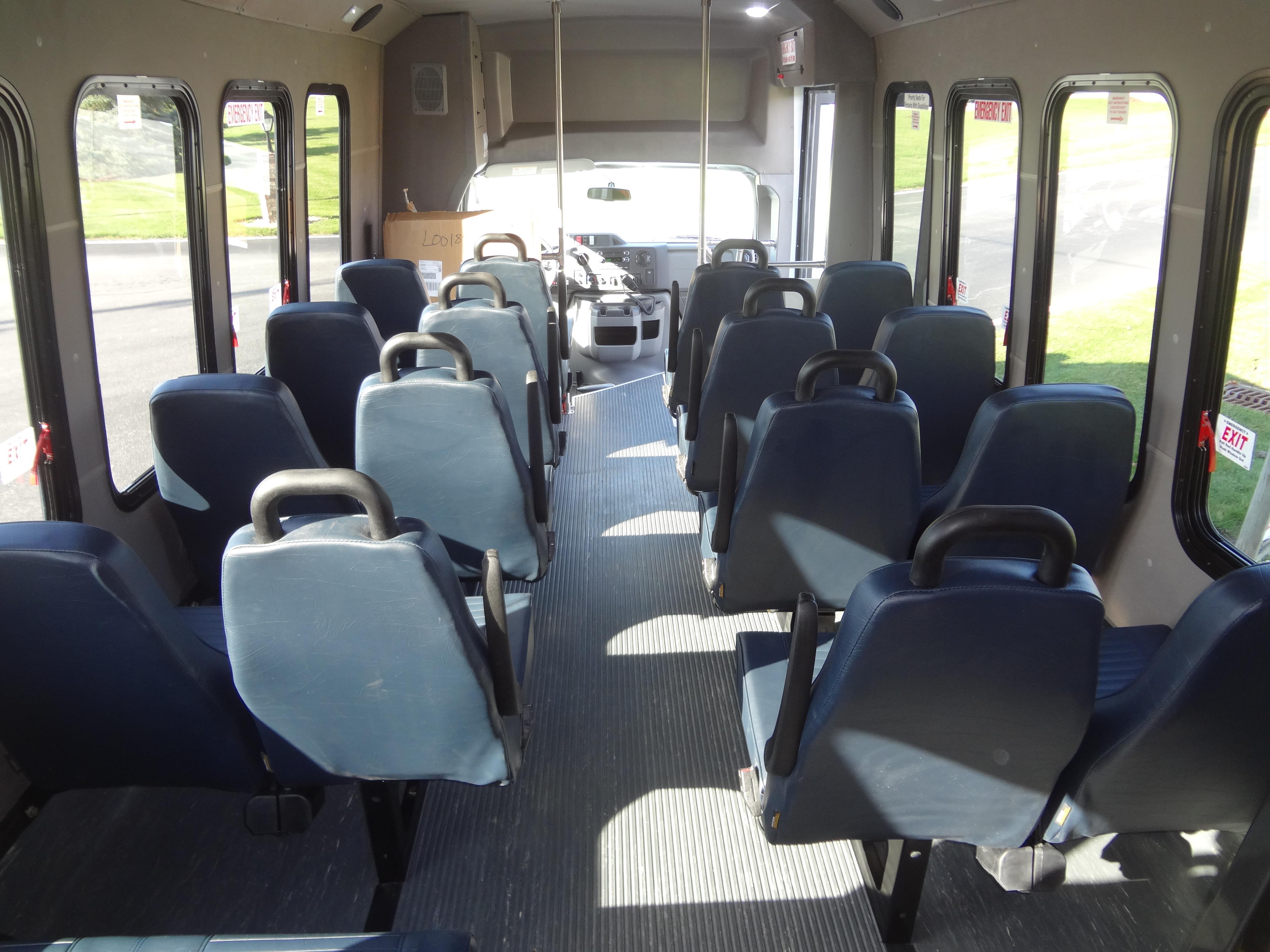

  • (16) Mid-Back Rigid, Level 1 Fabric w/ Lap Belt (ea)
  • Mirrors, Remote Only Ford Door Mount Switches
  • Paging System w/ 2 Speakers
  • (2) Restraint System, Titan W/Wall
  • Running Board Driver 10" Diamond Plate
  • Safety Kit Complete
  • (8) Seatbelt USR Double
  • (2) Seatbelt USR Foldaway
  • Stainless Steel Wheel Liner
  • Timbren Suspension Spring E450

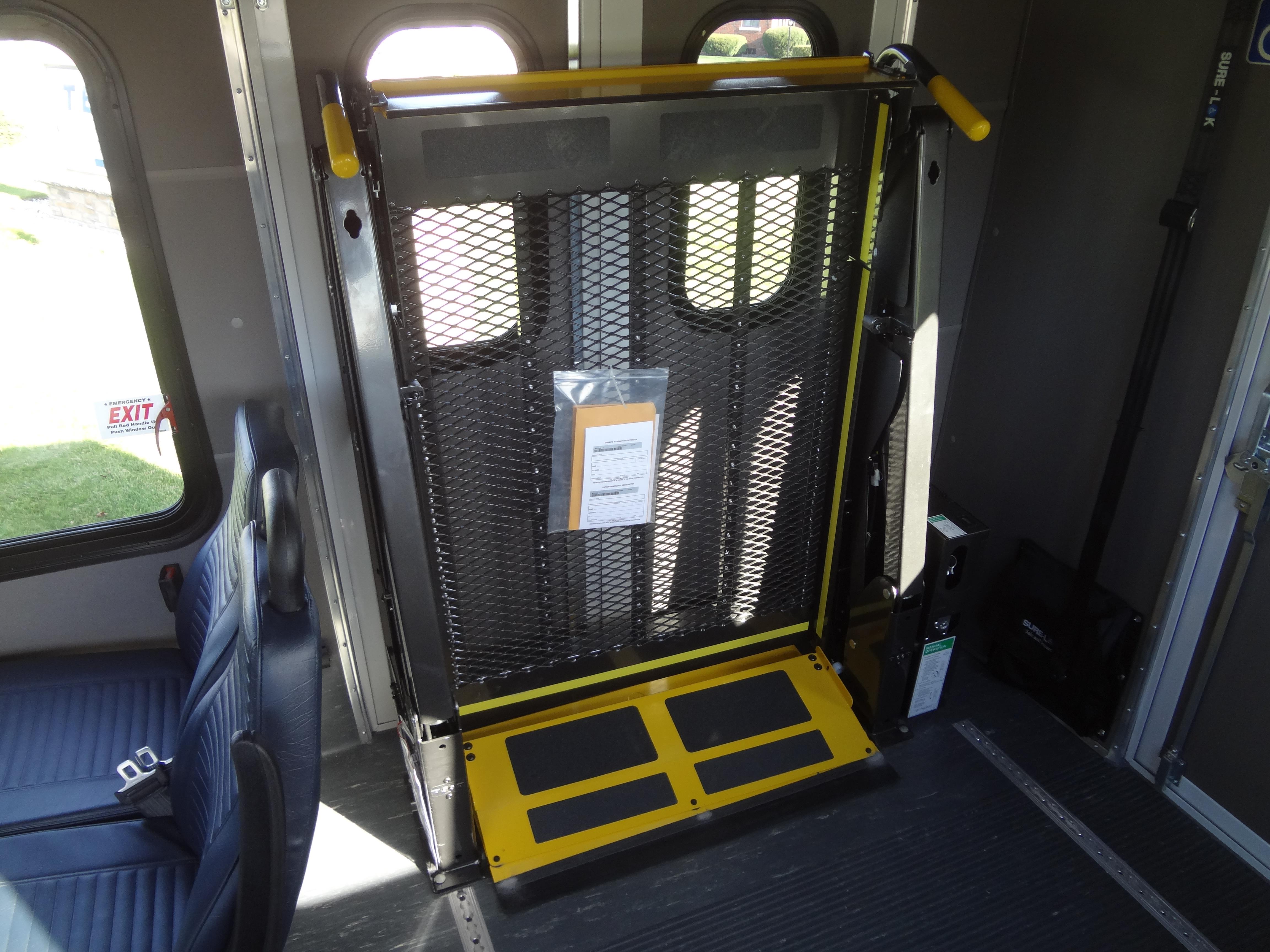

  • W/C Lift Rear Installation

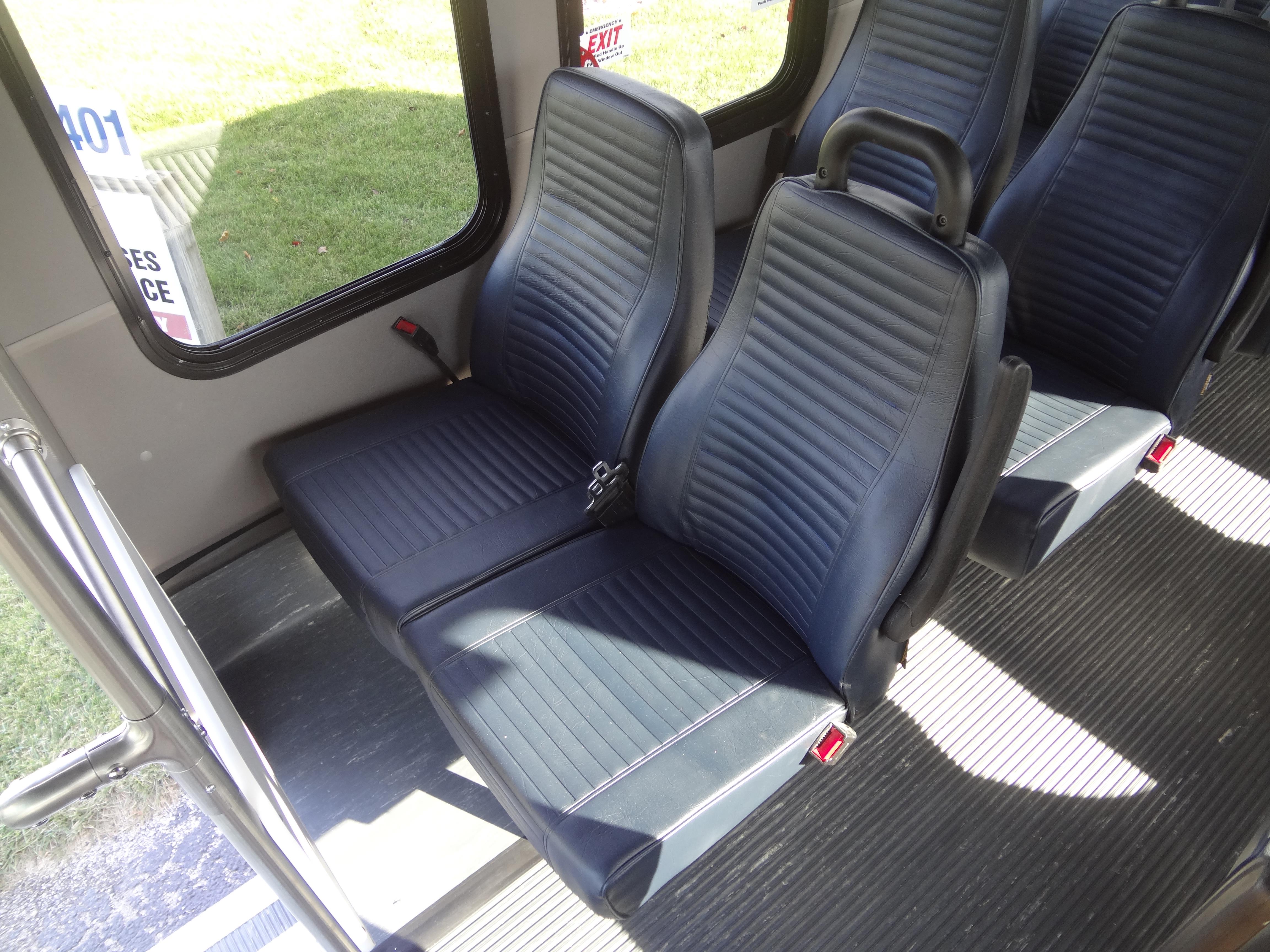

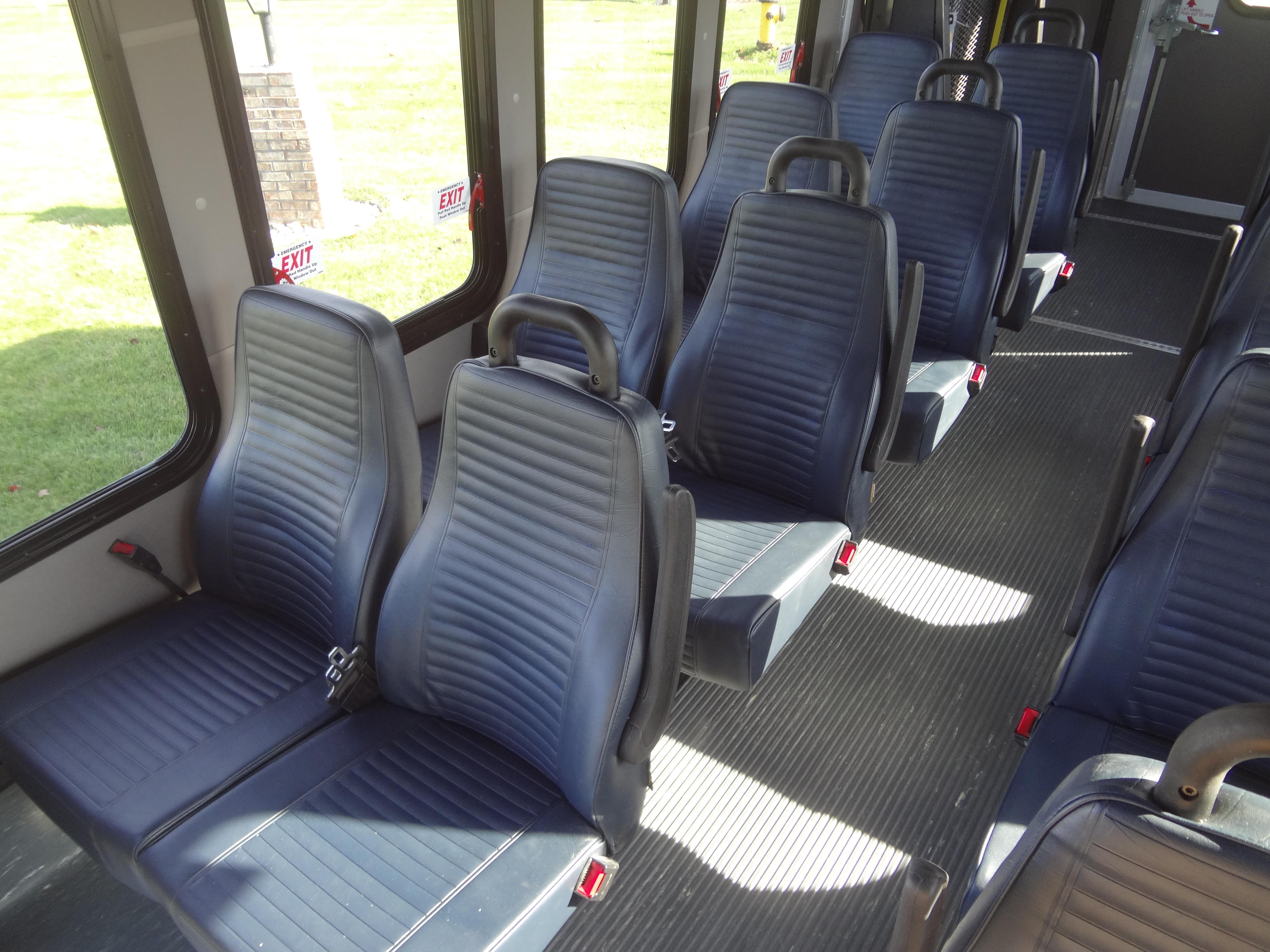

Seating Options

At TESCO Bus, we want the process of purchasing a bus to be as easy as possible. Finding the perfect seat for your bus may seem overwhelming, but we are here to help. We are a distributor for Freedman seats, the most common of all seating in the transportation industry. Freedman offers endless amounts of seating types from the low back vinyls to the high back recliners, both common choices amongst our customers. To take a deeper a look at some of the Freedman seats and products that TESCO offers, click here.

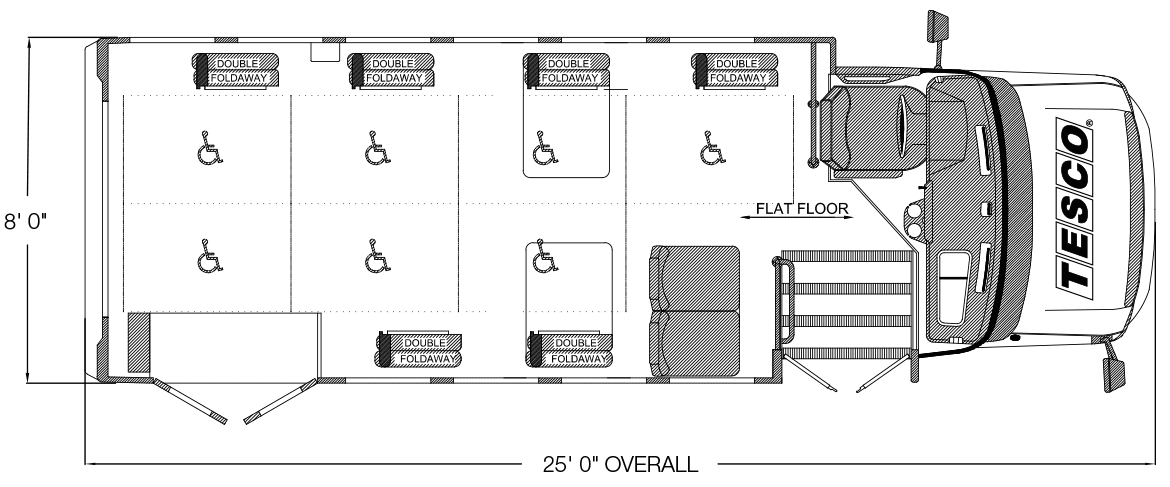

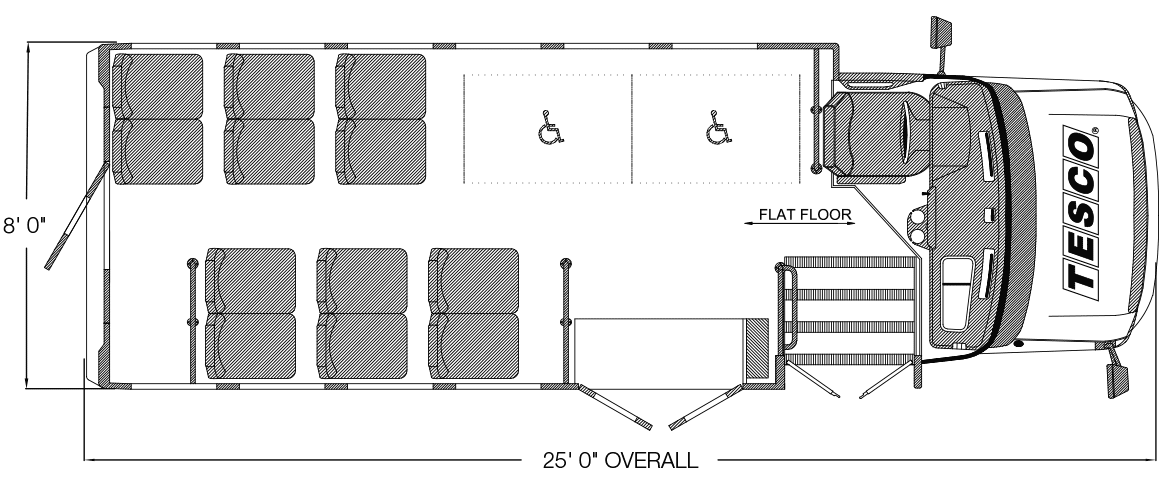

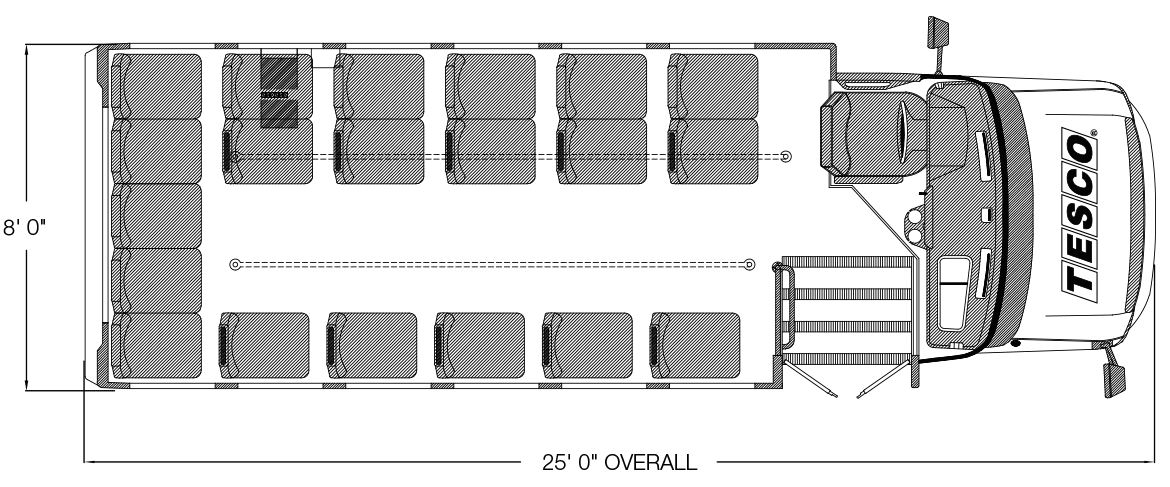

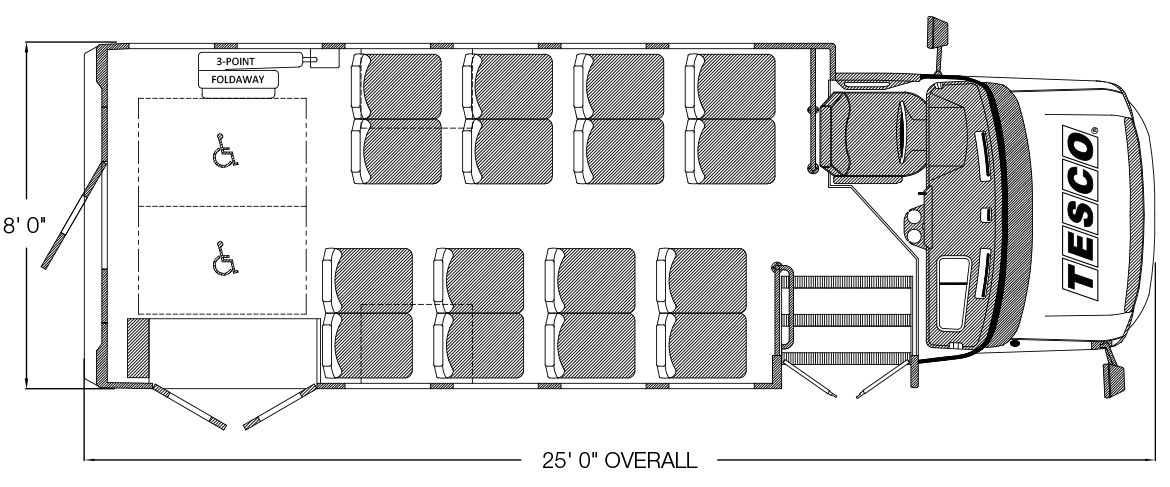

Dimensions

  • Chassis Choices: Ford and Chevrolet (all data below based on Ford)
  • Overall Length: 25′ – 0″
  • Overall Height: 9′ – 6″ (Maximum varies by floor plan)
  • Exterior Width: 8′-0″
  • Interior Height: 75″
  • Interior Width: 93″
  • Entry Door Width: 36″ (31.5″ x 80″ clear opening)
  • Maximum Passengers: 25
  • Maximum W/C Placements: 7
  • Engine Choices: Gas
  • Lift Options: Front or Rear
