Vehicle Description

Champion Bus LF Transporter

Champion. The name speaks for itself. Dedication. Performance. Achievement. That's what we do and who we are. Our customers deserve quality and the peace of mind that only a skilled workforce with an ever-onward dedication to safety can provide.

The LF Transporter boasts heavy-duty performance. In addition to single-step entry, this medium-duty shuttle bus offers the greatest passenger capacity in the medium-duty category.

DESIGNED TO MEET OR EXCEED APPLICABLE FMVSS STANDARDS and FORD QVM

Features

FLEXBUS™ Technology
  • lntelliSYNC® Electronically Controlled "Smart" Suspension system - Increased stability and ride quality for all passengers
  • Automatic Self-Leveling - Level floor throughout the passenger compartment regardless of the crown of the road at full kneel and ride height
  • Equalizer Ramp - Automatically senses the height of the ramp deployment surface and adjusts to equate all sections of the ramp to provide all passengers with the easiest possible single-grade slope accessibility
  • OverRise - The innovative OverRise feature lifts the entire vehicle up to 2.5" inches higher than the OEM ride height at the push of a button
  • Auxiliary Air Support System - The air suspension system contains an emergency auxiliary air support system, which is separate and independent of the vehicle's main air operating system
  • 3.5" LCD Digital display - For Real-Time Ramp/ Suspension System Performance & Diagnostics
  • Heavy-duty High-capacity DC Driven Suspension Compressor - Made to kneel at every stop and continuously maintain air pressure. Due to the high CFM compression rate. full air system recovery from a full kneeled position to vehicle ride height within 3.5 seconds ... Industry’s Best!
Ford Chassis Standards
  • 55 gallon fuel tank
  • 225 amp alternator
  • Dual 650 CCA battery
  • Power 4-wheel disc (ABS)
  • LT225/75RX16E tires
  • Tilt cruise
Chevrolet Chassis Standards
  • Dual 145-amp alternator-diesel dual 770 CCA battery
  • 57 gallon fuel tank
  • Power disc brakes
  • TIRESLT225/75R 16E, BSW all season
  • Tilt cruise
  • Chrome appearance package
International Chassis Standards
  • Automatic Allison transmission
  • Brake system, hydraulic
  • 320 amp alternator
  • 225/70R19.5 R250F tires
  • 40 gallon fuel tank
Conversion Standards
  • Airporter style body w/fiberglass plug window
  • Electronic 4-point auto-leveling full-kneel suspension system
  • DC driven air compressor
  • Galvanized steel cage construction
  • Galvanized wheelwells
  • Street side exhaust
  • Mud flaps
  • Engine block heater OEM
  • Self-diagnosing 12 volt electrical panel (fuses)
  • Door activated entrance lighting
  • Exterior key switch - entrance door
  • Plywood floor
  • Gerflor flooring
  • London smoke interior
  • Solid windows
  • Rear egress window
  • Drip rail over windows
  • Composite exterior
  • Roof one piece composite
  • Fuel fill door s/s with thumb lock
  • Black steel powder coated rear bumper
  • Electric passenger entry door
  • Right and left hand grab rail at entry
  • Padded modesty panels
  • ROSCO manual mirrors
  • Track seating
  • Driver's seat OEM
  • Full body undercoating
Seating Options

At TESCO Bus, we want the process of purchasing a bus to be as easy as possible. Finding the perfect seat for your bus may seem overwhelming, but we are here to help. We are a distributor for Freedman seats, the most common of all seating in the transportation industry. Freedman offers endless amounts of seating types from the low back vinyls to the high back recliners, both common choices amongst our customers. To take a deeper a look at some of the Freedman seats and products that TESCO offers, click here.

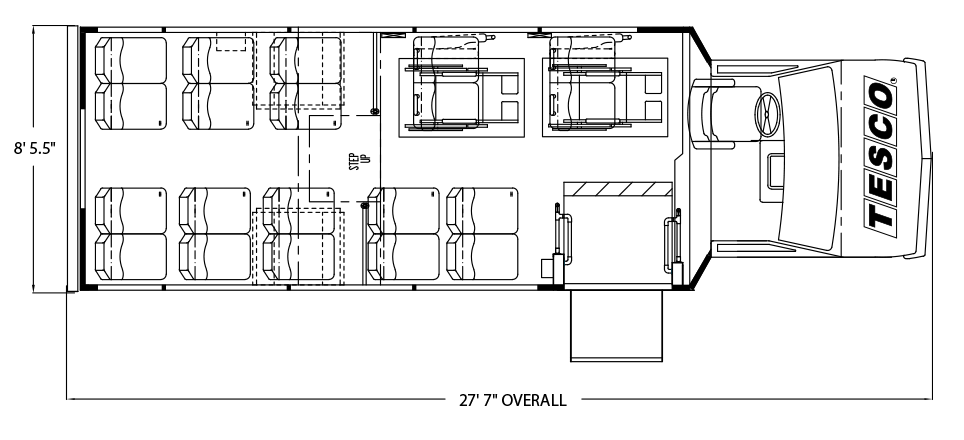

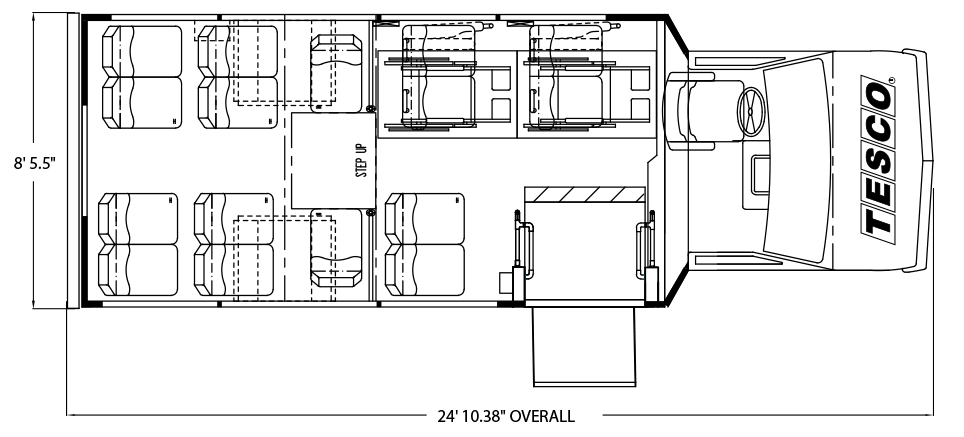

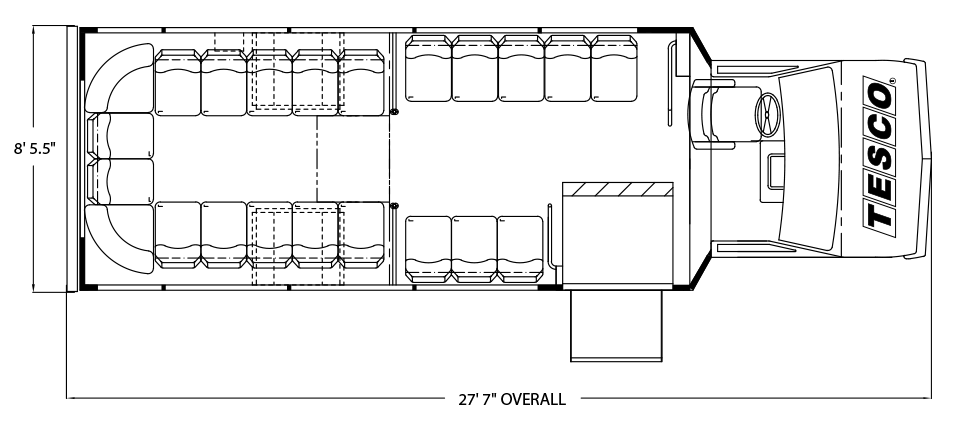

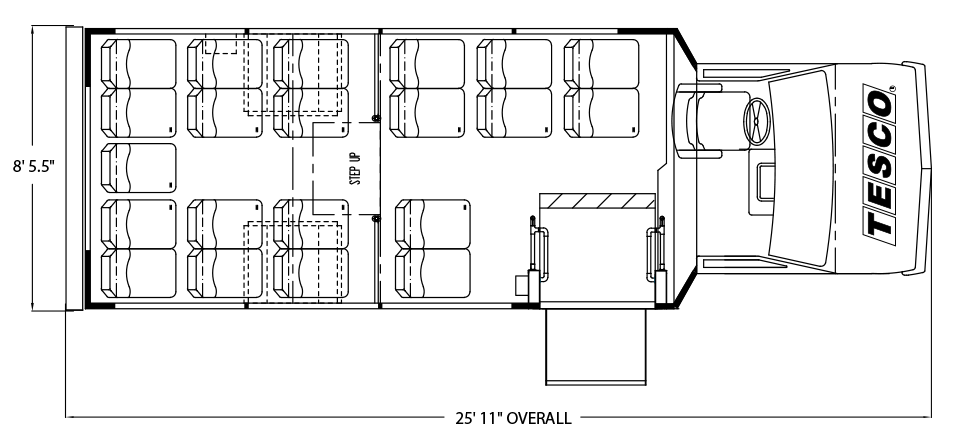

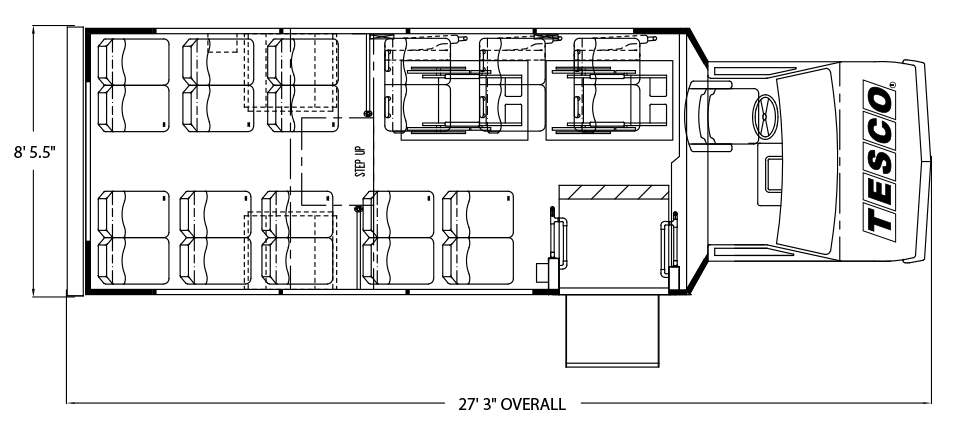

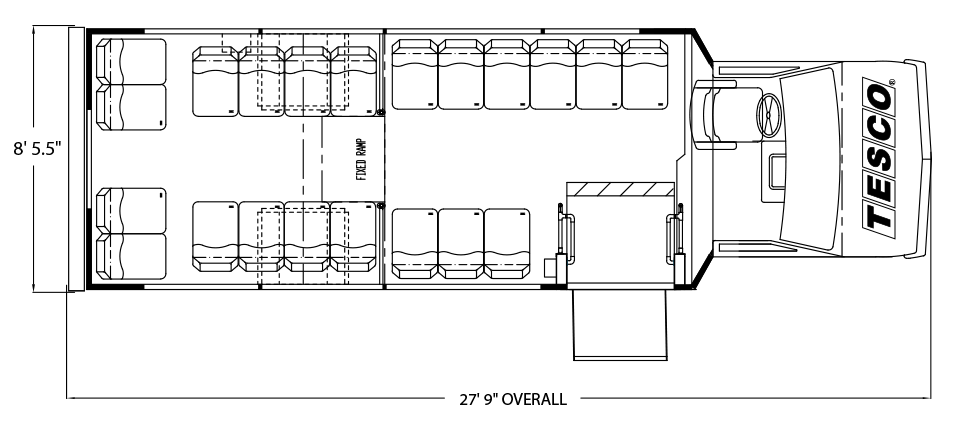

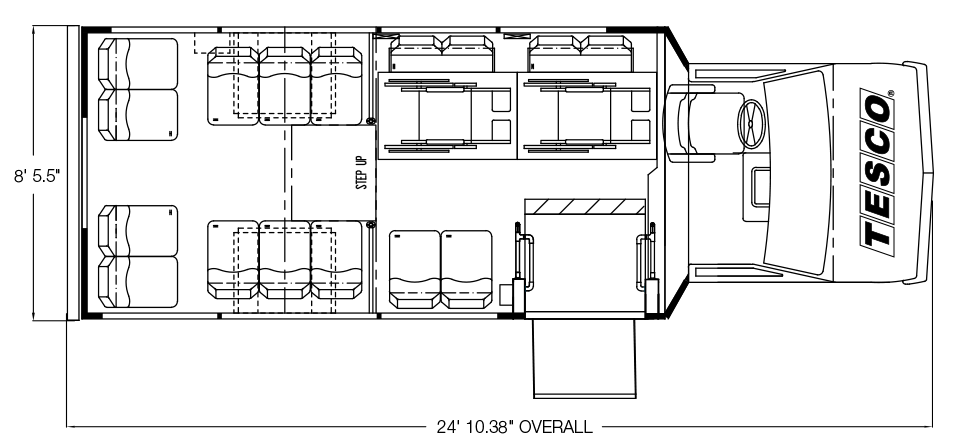

Floorplans

Dimensions

  • Chassis: Ford E-450, Chevrolet G4500 or International UC
  • Engine: 6.8L Gas, 6.6L Diesel or Gas, or Maxxforce 7 300HP
  • Transmission: automatic - 5 speed, 6 speed or Allison
  • Exterior Height: 111" or 113"
  • Exterior Width: 102"
  • Interior Height: 81" or 88.5"
  • Interior Width: 96.75"
  • Length: 24.5', 25', 26', 27' or 31'
  • Wheelbase: 186", 189", 208" or 240"
  • GVWR: 14,200#, 14,500# or 19,500#
