Vehicle Description

Spirit of Freedom

The ARBOC Spirit of Freedom provides a single, non-discriminatory patented angled and accessible entranceway. Passengers of all mobility capabilities, including wheelchair riders and even those using walkers, can experience what Equal Access for Everyone� truly means! The innovative Spirit of Freedom is the only bus of its kind, offering all the benefits of a low floor bus at a competitive price and making superior accessibility available to everyone! Built on the conventional GM G4500 chassis, the Spirit of Freedom rides on the OEM spring suspension while exceeding ADA guidelines with a 1:5 ramp slope. If speed of operation, passenger dignity and safety are important, then the Spirit of Freedom is the bus for you!

Features

Spirit of Freedom Advantages
  • All Tubular Steel Cage Construction
  • Bolt & Bonded Construction
  • Full Laminated Body
  • Body Width: 96" (does not include mirrors)
  • Body Height: 1150" (does not include roof hatch or AC)
  • Seating Capacity: Theater Seating up to 22 Passengers
  • Wheel Chair Capacity: up to 8
  • Altro Flooring (Non-Coved) - Storm Gray
  • Interior Wheel Housings completely encapsulated w/Poly Urea Coating
  • 5/8" Wood Floor (edge sealed prior to installation)
  • Altoona Tested- 5 Years/150,000 Miles
  • Meets all applicable FMVSS Regulations Including FMVSS 220
Standard Features & Equipment
  • GM4500 with GVWR 14,200
  • GVWR Front Axle: 4,600
  • GVWR Rear Axle: 9,600
  • Vortec 6.0L Gas Engine
  • 6-Speed Automatic (MYD) Transmission
  • Heavy Duty Disc Brakes with four-wheel ABS
  • 220 Amp Alternator
  • Dual Batteries
  • Hour Meter
  • LT225/75RX16D/E Tires
  • 57 Gallons Fuel Tank
  • 50 State Emissions
  • Tilt/Cruise
  • 12V & 110V Power Ports
  • Low Oil Pressure Light
  • Daytime Running Lights
  • Factory Dash A/C, Defroster and Heat
  • Front & Rear Mud Flaps
  • Steel Rear Bumper Painted Black
  • Exhaust Streetside Rear
Exterior Body & Lights
  • Rear Center Mounted Brake Light - LED
  • Exterior Light at Entry Door - LED
  • Black Rubber Rear Wheel Well Flares
  • One Piece Exterior FRP Wall/Skirt
  • Flush Mount Front Cap Marker Lights - LED
  • Heated/Remote Exterior Mirrors
Windows & Doors
  • Solid Framed Windows
  • Egress Window Lights
  • Side View Window Behind Driver
  • Electric Outward Opening Entrance Door
  • Rear Egress Window (24 x 60)
Electrical
  • LED Interior/Exterior Lights
  • Interior Passenger Lights "ON" with door
  • Auxiliary Battery Compartment w/Tray and Door
  • Switches Mounted on Driver's Console
  • Master Battery Disconnect Switch
  • Multiplex 12V Electrical System
  • Backup Alarm
Interior
  • OEM Driver Console w/Cup Holder
  • Right Hand & Left Hand Stanchions - Stainless Steel
  • Entry Assist Handles - Stainless Steel
  • One Piece FRP Interior Walls/Ceiling
  • Door Header Access Panel
Optional Equipment
  • Romeo Rim Bumper
  • Hawkeye Back Up system
  • Driver Side Running Board
  • Tow Hooks Rear
  • Hood Scoops Perko
  • Altro or Gerflor Flooring
  • Remote/Heated Mirrors
  • Rear door
  • Roof Hatch
  • Deluxe Overhead Parcel Racks
  • Rear Luggage
  • Bike Rack
  • Driver Storage Compartment
  • CNG Rear Storage Compartment
  • Sensitive Door Edge - Main Entry
  • Front Illuminated ID Sign- No lettering
  • Front and Side Destination Signs
  • USB Ports
  • Under Hood Lite
  • Back Up Camera
  • Ramp Activation System
  • Passenger Stop Request
  • AM/FM/CD w/4 Speakers Jensen-PA ready
  • Tour Bus Audio Visual Package
  • Digital Clock in Driver's Area
  • Roof Top A/C System
  • Additional Rear Heater
  • Dash Mounted Defrosted Fan
  • Insulated Heater lines
  • Driver's Coat Hook
  • Walker Rack
  • Amerex Fire Suppression
  • Q'Straint Wheelchair Tiedown System
  • Electric Ramp Heater
  • Security Camera System
Seating Options

At TESCO Bus, we want the process of purchasing a bus to be as easy as possible. Finding the perfect seat for your bus may seem overwhelming, but we are here to help. We are a distributor for Freedman seats, the most common of all seating in the transportation industry. Freedman offers endless amounts of seating types from the low back vinyls to the high back recliners, both common choices amongst our customers. To take a deeper a look at some of the Freedman seats and products that TESCO offers, click here.

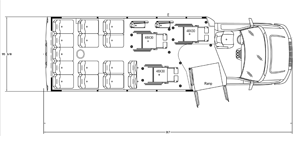

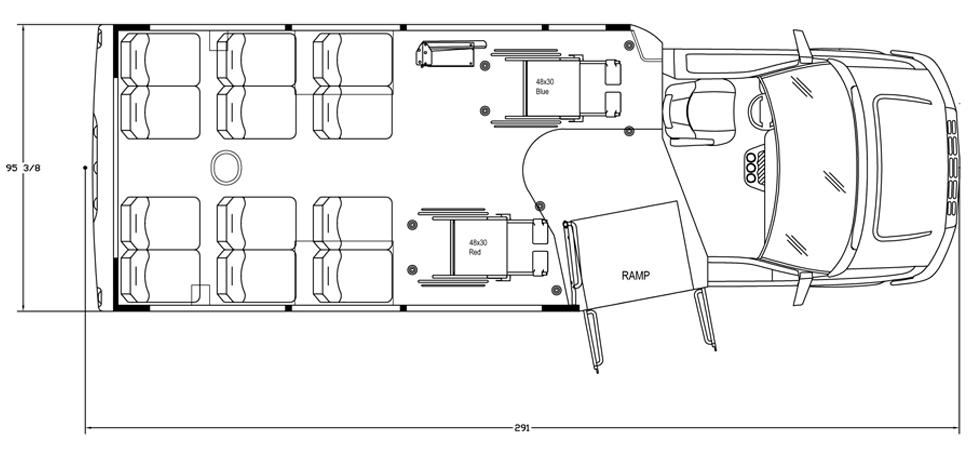

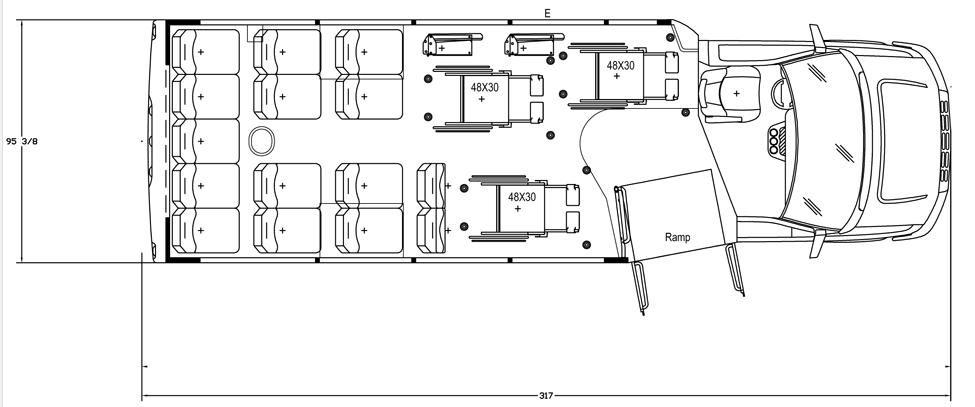

Floorplans

Dimensions

  • Passengers: up to 22 passengers
  • Chassis: Chevrolet 4500
  • Wheelbase: 165" - 210"
  • Engine: 6.0L Gas
  • Exterior Height: 115"
  • Exterior Width: 96"
  • Length: 24' - 28'
  • GVWR: 14,200 lbs.
